Hi NYC 71,

I have 71 LC was originally auto, the cross member ends were "wrapped" in a rubber block insulator when I purchased the car. I believe they were factory fitment.

May still have them in the shed if you are chasing pictures, I didn't use them when I fitted the 4 speed,

Regards Simon

hHi Simon
yeah mate that would be great if you could get a picture, can't seem to find much about them or if anyone makes an aftermarket version
Cheers

#52 debkar

debkar

    Forum Fixture

  • Members
  • PipPipPipPipPip
  • 882 posts
  • Location:Townsville QLD
  • Car:1971 LC 2 Door
  • Joined: 03-January 09
Garage View Garage

Posted 07 August 2012 - 08:01 PM

Will do, I'll dig through the shed tomorrow, I think I still have the rubbers there

#53 S pack

S pack

    Scrivet Counter

  • Members
  • PipPipPipPipPipPipPip
  • 12,284 posts
  • Name:Dave
  • Location:Luggage Point
  • Car:73 LJ
  • Joined: 25-January 10

Posted 07 August 2012 - 10:50 PM

hHi Simon
yeah mate that would be great if you could get a picture, can't seem to find much about them or if anyone makes an aftermarket version
Cheers


Have a look here in judgelj's build thread, page 3, 17th post down.
You get a partial view of the rubber insulator and the metal retainer that encapsulates it and bolts up to the chassis rail.
Disregard the 10mm thick home made metal spacer that Jacob has installed between the insulator and the rail.

http://www.gmh-torana.com.au/forums/topic/60596-lc-s-coupe-rebuild/page__st__50

#54 debkar

debkar

    Forum Fixture

  • Members
  • PipPipPipPipPip
  • 882 posts
  • Location:Townsville QLD
  • Car:1971 LC 2 Door
  • Joined: 03-January 09
Garage View Garage

Posted 08 August 2012 - 06:13 PM

Thanks Dave, had forgotten Jacob's car,

Here are the auto insulators , hope this is a help,

Posted Image
Posted Image
Posted Image
Posted Image

#55 NYS 71

NYS 71

    Forum Member

  • Members
  • PipPipPip
  • 54 posts
  • Name:Pot-c
  • Location:Brisbane
  • Car:Lc Torana Coupe
  • Joined: 01-October 11

Posted 08 August 2012 - 07:40 PM

thanks mate thats a big help, now i know roughly what i'm looking for. ive never seen any like that on a torana that ive worked on, so does anyone know if anyone makes a aftermarket version or similar. i couldn't find much out about it on the internet.

#56 ribz0

ribz0

    Forum Fixture

  • Members
  • PipPipPipPipPip
  • 509 posts
  • Name:Eric
  • Location:Perth WA
  • Car:LC Torana & 1975 South African Mini
  • Joined: 01-April 09

Posted 08 August 2012 - 07:52 PM

This might help...

I had to take them off when I did a manual coversion on mine...

Posted Image

Cheers

#57 debkar

debkar

    Forum Fixture

  • Members
  • PipPipPipPipPip
  • 882 posts
  • Location:Townsville QLD
  • Car:1971 LC 2 Door
  • Joined: 03-January 09
Garage View Garage

Posted 08 August 2012 - 07:55 PM

thanks mate thats a big help, now i know roughly what i'm looking for. ive never seen any like that on a torana that ive worked on, so does anyone know if anyone makes a aftermarket version or similar. i couldn't find much out about it on the internet.


I've never seen them after market. I can get measurements for you of the steel brackets, the rubber, possibly make out of solid block.



#58 NYS 71

NYS 71

    Forum Member

  • Members
  • PipPipPip
  • 54 posts
  • Name:Pot-c
  • Location:Brisbane
  • Car:Lc Torana Coupe
  • Joined: 01-October 11

Posted 09 August 2012 - 07:08 PM

I've never seen them after market. I can get measurements for you of the steel brackets, the rubber, possibly make out of solid block.

yeah mate that would be great might have to try to fab some up. thanks i'll keep an eye for some, theres a few swaps coming up.

#59 debkar

debkar

    Forum Fixture

  • Members
  • PipPipPipPipPip
  • 882 posts
  • Location:Townsville QLD
  • Car:1971 LC 2 Door
  • Joined: 03-January 09
Garage View Garage

Posted 09 August 2012 - 07:15 PM

No worries, I'll measure up Saturday morning.

Regards Simon

#60 debkar

debkar

    Forum Fixture

  • Members
  • PipPipPipPipPip
  • 882 posts
  • Location:Townsville QLD
  • Car:1971 LC 2 Door
  • Joined: 03-January 09
Garage View Garage

Posted 13 August 2012 - 07:24 PM

Hi

Overall length of the bracket is 185mm
Overall width of the bracket is 45mm
Overall depth of the bracket is 30mm
Length where rubber insert sits is 110mm x 42mm

Between bolt holes is 145mm which should line up with threaded holes in the car

Hope that helps,

Regards Simon

#61 parap187

parap187

    Forum Participant

  • Members
  • PipPip
  • 16 posts
  • Name:Nathan
  • Location:Darwin
  • Car:LC Torana
  • Joined: 16-March 10

Posted 24 August 2013 - 12:06 AM

Hi Guys



Please help out,

I have an LC 71 2door with aussie 4 speed.

My x member has two spacers on each side of the cross member and nothing under the rear engine mount????????????



So it has 4 spacers all up, they look like two different thinknessess......

Please help................



#62 N/A-PWR

N/A-PWR

    CABIN ENGINE CONTROLS GALORE

  • Members
  • PipPipPipPipPipPipPip
  • 9,157 posts
  • Name:Dave I
  • Location:Wooroloo, 65km's East of Perth
  • Car:'1969' LC RAT TORANA
  • Joined: 08-December 12

Posted 24 August 2013 - 12:19 AM

The above picture Nathan say's you need a spacer on the outer edges and one at the gearbox mount. Dave I



#63 S pack

S pack

    Scrivet Counter

  • Members
  • PipPipPipPipPipPipPip
  • 12,284 posts
  • Name:Dave
  • Location:Luggage Point
  • Car:73 LJ
  • Joined: 25-January 10

Posted 24 August 2013 - 12:19 AM

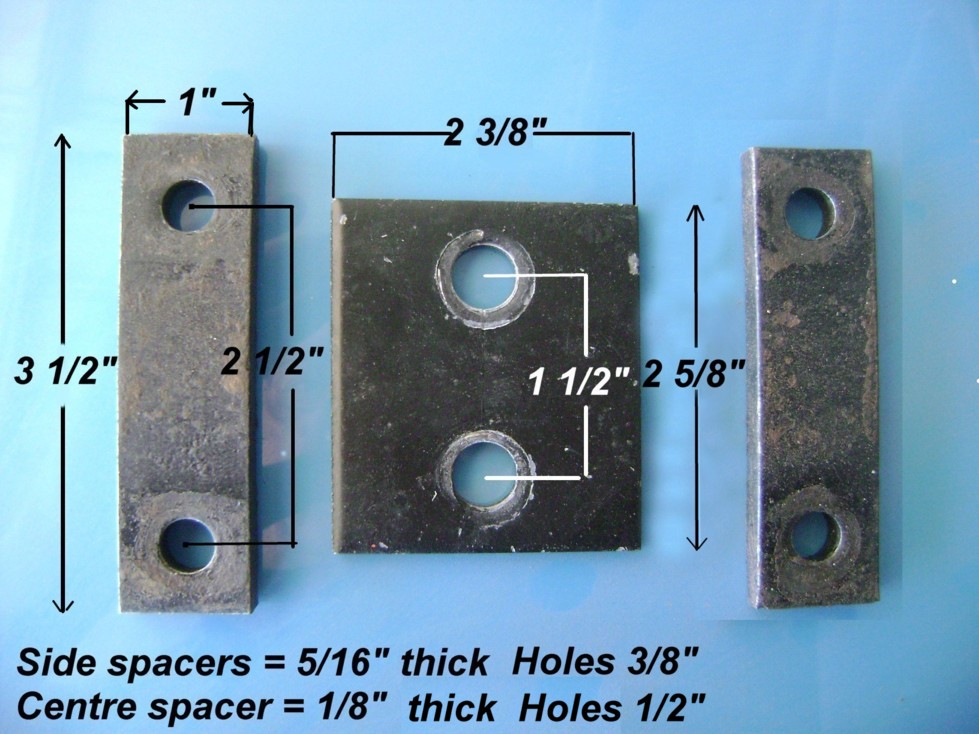

Nathan, this is exactly what you need, 3 spacers for LC with Aussie M20 4spd. Same as the 3spd. There is no spacer between the crossmember and the rear mount

Only the Opel 4 spd had four spacers.




#64 N/A-PWR

N/A-PWR

    CABIN ENGINE CONTROLS GALORE

  • Members
  • PipPipPipPipPipPipPip
  • 9,157 posts
  • Name:Dave I
  • Location:Wooroloo, 65km's East of Perth
  • Car:'1969' LC RAT TORANA
  • Joined: 08-December 12

Posted 24 August 2013 - 12:23 AM

OK - I agree with Dave - did not say Opel up there.



So that makes Nathan's LC Correct, except remove one spacer from each side - Yay


Edited by TORYPOWER, 24 August 2013 - 12:27 AM.


#65 S pack

S pack

    Scrivet Counter

  • Members
  • PipPipPipPipPipPipPip
  • 12,284 posts
  • Name:Dave
  • Location:Luggage Point
  • Car:73 LJ
  • Joined: 25-January 10

Posted 24 August 2013 - 12:29 AM

OK - I agree with Dave - did not say Opel up there.

That's because that drawing/diagram was pre Aussie M20 release in LC Torana.


Edited by S pack, 24 August 2013 - 12:29 AM.


#66 parap187

parap187

    Forum Participant

  • Members
  • PipPip
  • 16 posts
  • Name:Nathan
  • Location:Darwin
  • Car:LC Torana
  • Joined: 16-March 10

Posted 09 May 2015 - 08:40 AM

thanks, you mob



torana (29).jpg


#67 ChrisLC

ChrisLC

    Forum Member

  • Members
  • PipPipPip
  • 73 posts
  • Name:Chris
  • Location:Sydney
  • Car:1971 LC Four Door S
  • Joined: 17-May 15

Posted 17 May 2015 - 10:35 AM

Just saw this old thread thaks to parap187, and  I am very surprised. My 71 LC S had a Opel box, it did not last long once the 2250 engine got the flick for a hot 186. I loved the gear ratio's though, especially winding it out to 160k's in third gear down Cosgrove Road Enfield many years ago (usually well after midnight on way home from a night out). But the business with the crossmember spacers has my interest. I remember those metal end spacers when I replaced the Opel with a M20 and I re-used them. That was over 30 years ago. Looking at S pack's photo above, I am confused as in earlier posts, it is stated that these end spacer blocks are only for the Opel's. So what should I have?  Does anyone know why the spacer was required for a Opel but not a M20?



#68 S pack

S pack

    Scrivet Counter

  • Members
  • PipPipPipPipPipPipPip
  • 12,284 posts
  • Name:Dave
  • Location:Luggage Point
  • Car:73 LJ
  • Joined: 25-January 10

Posted 17 May 2015 - 09:56 PM

Chris



For the Aussie M20 4spd you need the same spacers as the M15 3spd.

The M15 3spd is the crossmember depicted in the middle in this diagram.






#69 ChrisLC

ChrisLC

    Forum Member

  • Members
  • PipPipPip
  • 73 posts
  • Name:Chris
  • Location:Sydney
  • Car:1971 LC Four Door S
  • Joined: 17-May 15

Posted 19 May 2015 - 07:43 PM

Thanks S Pack. I am pretty sure I re-used that extra spacer under the engine mount. I wonder what ramifications it has/had? Gear shifters a little higher? I think I remember them too close to the hole.



#70 jd lj

jd lj

    Forum Fixture

  • Members
  • PipPipPipPipPip
  • 1,532 posts
  • Name:James D
  • Location:in the shed
  • Car:LJ SVO
  • Joined: 03-December 10

Posted 09 January 2019 - 06:22 AM

Can anyone tell me if the 72 and 73 LJ cross members are interchangeable in regards to the same bolt spacing to the chassis rails? If the 73 cross member is wider front to back are the holes spread further apart also? Would a 72 cross member bolt straight up to a 73 car?

#71 S pack

S pack

    Scrivet Counter

  • Members
  • PipPipPipPipPipPipPip
  • 12,284 posts
  • Name:Dave
  • Location:Luggage Point
  • Car:73 LJ
  • Joined: 25-January 10

Posted 09 January 2019 - 06:37 AM

Would a 72 cross member bolt straight up to a 73 car?

Yes, all the transmission support member mounting holes (7 bolt holes in each rail from memory) in the chassis rails remained the same from the 1st LC to the last LJ.



#72 jd lj

jd lj

    Forum Fixture

  • Members
  • PipPipPipPipPip
  • 1,532 posts
  • Name:James D
  • Location:in the shed
  • Car:LJ SVO
  • Joined: 03-December 10

Posted 09 January 2019 - 06:46 AM

Thanks Dave,
I thought that you'd be able to answer that for me.
