does anybody have a pic or whatever to say what and where the GTR badged went on an LC, thanks in advance

#2 _blownlcgtr_

_blownlcgtr_
  • Guests

Posted 22 July 2010 - 08:28 PM

does anybody have a pic or whatever to say what and where the GTR badged went on an LC, thanks in advance

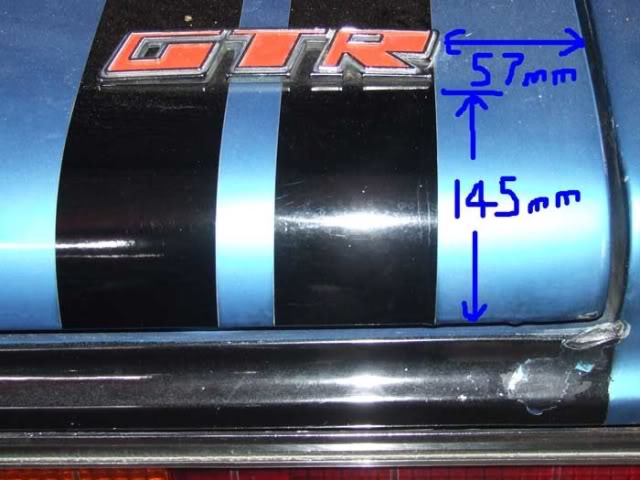

Attached File  (11) lc gtr quarter panel badge.JPG   138.85K   254 downloads
Not sure if this is badge position you where after

#3 lcgtr1970

lcgtr1970

    Forum Fixture

  • Members
  • PipPipPipPipPip
  • 1,702 posts
  • Name:Jordan
  • Location:having a beer, looking at the torana
  • Joined: 13-March 06

Posted 22 July 2010 - 10:23 PM

do you need placement for the boot and grille too? i have them somewhere...same as above...originally from pop's ss

#4 _bunkerjest_

_bunkerjest_
  • Guests

Posted 22 July 2010 - 11:49 PM

Yeah mate placement for any badges would be awesome. Also I can't make out wat part of the car that is in the pic

#5 GTR-1

GTR-1

    Forum Fan

  • Members
  • PipPipPipPip
  • 351 posts
  • Location:Auckland, New Zealand
  • Car:Phantom Grey 7/71 LC GTR.
  • Joined: 11-April 07

Posted 23 July 2010 - 02:24 PM

Yeah mate placement for any badges would be awesome. Also I can't make out wat part of the car that is in the pic

That pic is of the right hand rear quarter.

#6 Bazza

Bazza

    ǝɹnʇxıɟ ɯnɹoɟ

  • Members
  • PipPipPipPipPipPipPip
  • 4,289 posts
  • Location:Outer Melb West Vic
  • Car:ɐuɐɹoʇ
  • Joined: 11-November 05

Posted 23 July 2010 - 02:59 PM

Hi

These were posted by members LX304 and Finer70 a years ago.


Location of GTR & Torana badge as measured from an original boot lid.


GTR Badge on the right side of the boot. Two holes measured from right edge and lower lip of boot lid.

Measurements taken with a flexible tape along the surface of the boot.

Hole one = 128mm up from lip 85mm in from edge.

Hole two = 118mm up from lip 165mm in from edge.

The Torana script Badge goes on the left side of boot. There are three holes measured from the left edge and the lower lip of the boot lid.

Measurements taken as before.

Hole one = 77mm from the lip 130mm from the edge.

Hole two = 131mm from the lip 111mm from the edge.

Hole three = 185mm from the lip 111mm from the edge.

All holes 4mm dia.



Cheers

Bazza

Attached Files



#7 _bunkerjest_

_bunkerjest_
  • Guests

Posted 24 July 2010 - 10:32 AM

bazza your a legend. thanks mate

#8 glenn stanley

glenn stanley

    Forum Member

  • Members
  • PipPipPip
  • 111 posts
  • Name:Stanley
  • Location:Sydney NSW
  • Joined: 16-December 08

Posted 08 December 2013 - 11:55 PM

is this the same for LJ GTRs?



#9 Potta

Potta

    Oh My, Don't you post alot

  • Members
  • PipPipPipPipPipPipPip
  • 6,026 posts
  • Name:Craig
  • Location:Gozzy, WA
  • Car:LC GTR, LC 4 door
  • Joined: 01-May 09

Posted 09 December 2013 - 01:51 AM

I'm pretty sure they don't have GTR badges except on the steering wheel, door cards and grill.



They may have the boot one though. Not 100% sure.



#10 evl666

evl666

    Forum Fan

  • Members
  • PipPipPipPip
  • 267 posts
  • Location:Left of centre
  • Car:71 LC 73 LJ
  • Joined: 02-October 13

Posted 24 May 2014 - 09:39 PM

Has anyone checked this about the lc gtr??? Cause Bazza and blown lc contradict each other?

#11 evl666

evl666

    Forum Fan

  • Members
  • PipPipPipPip
  • 267 posts
  • Location:Left of centre
  • Car:71 LC 73 LJ
  • Joined: 02-October 13

Posted 24 May 2014 - 09:53 PM

Would love it if a few could go and measure there side and boot please and get back to me

#12 Ice

Ice

    Cool

  • Members
  • PipPipPipPipPipPipPip
  • 15,103 posts
  • Name:Gene
  • Location:Galaxy's away from Ipswich
  • Car:77 HZ Sandman Van
  • Joined: 03-January 07

Posted 24 May 2014 - 09:54 PM

Those two pics are correct for the badges

#13 N/A-PWR

N/A-PWR

    CABIN ENGINE CONTROLS GALORE

  • Members
  • PipPipPipPipPipPipPip
  • 9,582 posts
  • Name:Dave I
  • Location:Wooroloo, 65km's East of Perth
  • Car:'1969' LC RAT TORANA
  • Joined: 08-December 12

Posted 24 May 2014 - 09:57 PM

Better talk to Marty,

Because the 145 is to the Top of the GTR measurement. Dave I



#14 evl666

evl666

    Forum Fan

  • Members
  • PipPipPipPip
  • 267 posts
  • Location:Left of centre
  • Car:71 LC 73 LJ
  • Joined: 02-October 13

Posted 24 May 2014 - 10:24 PM

I thought the side stripe when under the badge?? That's why I asked. And yes the 145 is wrong

Edited by evl666, 24 May 2014 - 10:26 PM.


#15 sibhs

sibhs

    Lotsa Posts!

  • Members
  • PipPipPipPipPipPip
  • 2,699 posts
  • Name:Martin
  • Location:Perth
  • Car:LJ Coupe S
  • Joined: 27-July 12

Posted 24 May 2014 - 10:26 PM

That boot picture measurement is wrong, wrong, wrong. Believe me!

#16 Bazza

Bazza

    ǝɹnʇxıɟ ɯnɹoɟ

  • Members
  • PipPipPipPipPipPipPip
  • 4,289 posts
  • Location:Outer Melb West Vic
  • Car:ɐuɐɹoʇ
  • Joined: 11-November 05

Posted 24 May 2014 - 10:28 PM

I thought the side stripe when under the badge?? That's why I asked. And yes the 145 is wrong

Hi



I posted the pics and measurements (believing that they were correct) but they were provided by 2 other forum members. I suggest you contact the original posters.





Cheers



Bazza


Edited by Bazza, 24 May 2014 - 10:29 PM.


#17 evl666

evl666

    Forum Fan

  • Members
  • PipPipPipPip
  • 267 posts
  • Location:Left of centre
  • Car:71 LC 73 LJ
  • Joined: 02-October 13

Posted 24 May 2014 - 10:28 PM

What's your measurements for the side and boot sibhs?

#18 N/A-PWR

N/A-PWR

    CABIN ENGINE CONTROLS GALORE

  • Members
  • PipPipPipPipPipPipPip
  • 9,582 posts
  • Name:Dave I
  • Location:Wooroloo, 65km's East of Perth
  • Car:'1969' LC RAT TORANA
  • Joined: 08-December 12

Posted 24 May 2014 - 10:34 PM

Good Man Marty,

I wonder why the Admin's have not fixed that Picture for Us hey. Dave I





That boot picture measurement is wrong, wrong, wrong. Believe me!



should I call you Martin, from now on Mate



Hi



I posted the pics and measurements (believing that they were correct) but they were provided by 2 other forum members. I suggest you contact the original posters.





Cheers



Bazza



Good Man Bazza,

You can Help with the Correction



#19 evl666

evl666

    Forum Fan

  • Members
  • PipPipPipPip
  • 267 posts
  • Location:Left of centre
  • Car:71 LC 73 LJ
  • Joined: 02-October 13

Posted 24 May 2014 - 10:35 PM

Hi

I posted the pics and measurements (believing that they were correct) but they were provided by 2 other forum members. I suggest you contact the original posters.


Cheers

Bazza

All good Bazza, would just like a few more people to measure, as well as answer my question about the side strips going under the gtr badge. My gtr has no stripes as it got resprayed but I've found the original holes where they where. When I measure the badge on the sides they are the 2mm from the roll edge but are about 9 mm longer than the pic and the boot one is lower than the pic

Edited by evl666, 24 May 2014 - 10:37 PM.


#20 sibhs

sibhs

    Lotsa Posts!

  • Members
  • PipPipPipPipPipPip
  • 2,699 posts
  • Name:Martin
  • Location:Perth
  • Car:LJ Coupe S
  • Joined: 27-July 12

Posted 24 May 2014 - 10:48 PM

Hi evl666, I have details on the boot placement on a GTR badge thread somewhere. Just search a few more. I have no info on side badges cause mines an Lj.

Read this from front to back

http://www.gmh-toran...gtr-boot-badge/


Edited by sibhs, 24 May 2014 - 10:51 PM.


#21 evl666

evl666

    Forum Fan

  • Members
  • PipPipPipPip
  • 267 posts
  • Location:Left of centre
  • Car:71 LC 73 LJ
  • Joined: 02-October 13

Posted 24 May 2014 - 10:57 PM

Hi evl666, I have details on the boot placement on a GTR badge thread somewhere. Just search a few more. I have no info on side badges cause mines an Lj.
Read this from front to back
http://www.gmh-toran...gtr-boot-badge/

Thanks sibhs, that's more like my boot!! But still doesn't help with the sides!!!

#22 _mikecatts_

_mikecatts_
  • Guests

Posted 25 May 2014 - 07:22 AM

ill do it for u later today... Ill measure and post..

The stripes go under the side gtr badge



#23 N/A-PWR

N/A-PWR

    CABIN ENGINE CONTROLS GALORE

  • Members
  • PipPipPipPipPipPipPip
  • 9,582 posts
  • Name:Dave I
  • Location:Wooroloo, 65km's East of Perth
  • Car:'1969' LC RAT TORANA
  • Joined: 08-December 12

Posted 25 May 2014 - 12:44 PM

Hi Bazza and Dattoman,



Would it be corrected to Doctor the Original Image URL, like the one below, so that the #4 in ( 145 ) be turned into a '0' Zero:-




Also, have a Caption under the Image, saying, 105 has been changed from 145









This is so that the size 105, will be the real size from now on, as it is an Average close enough Size. Dave I



would the Master Image URL be changed, so all the other Images would change as well automatically?

If not, we will need to seek out all the other ones and change them to the new Image URL, thank's in advance


Edited by TORYPOWER, 25 May 2014 - 12:56 PM.


#24 kiwi-lilj

kiwi-lilj

    Forum Fixture

  • Members
  • PipPipPipPipPip
  • 1,420 posts
  • Name:Blair
  • Location:NZ
  • Car:LIL J
  • Joined: 14-September 08

Posted 25 May 2014 - 01:21 PM

Mine is about 145 if you measure around the curve and if you measure straight about 110. Do you think people are using different measurement techniques perhaps ?





Attached File  DSC08428.JPG   143.45K   177 downloads







Mine is not original, i drilled it myself using the blue pic info.



#25 N/A-PWR

N/A-PWR

    CABIN ENGINE CONTROLS GALORE

  • Members
  • PipPipPipPipPipPipPip
  • 9,582 posts
  • Name:Dave I
  • Location:Wooroloo, 65km's East of Perth
  • Car:'1969' LC RAT TORANA
  • Joined: 08-December 12

Posted 25 May 2014 - 01:26 PM

Hi Blair,

If you wanted,

You could re-do the Position to the New Real Position. Dave I
