Tips on fitting Roof Lining


  • Please log in to reply
36 replies to this topic

#1 hanra

hanra

    Oh My, Don't you post alot

  • Members
  • PipPipPipPipPipPipPip
  • 6,327 posts
  • Name:Brad
  • Location:Far North Qld
  • Car:1975 LH SL/R 5000, 1967 Morris Cooper S, E36 BMW
  • Joined: 24-March 11

Posted 02 November 2011 - 08:36 PM

Ive purchased a roof lining off Boomfunk and am getting close to fitting it...

Ive had a look on there website which gives a basic run down:

http://cgautoupholstery.com/cart/index.php?main_page=page&id=8

One big concern I have is about the 2 wires. There are hooks in the beams running across the roof which the wires are held up by. The rear beam has all the hooks in tact. The front beam however.... out of the 6 hooks total, 3 have been broken off....

From right to left it goes. hook-missin-hook-interior light-missing-missing-hook.....

Im not sure what to do here.... I was thinking drilling another hole next to the existing one where the hook is missing and feeding a small cable tie through? Or even just some lockwire?

Ive been told to fit the wires first up???

Ive bought 2m of pinch weld which Ill cut up into bits to keep the edges in place when Im fitting.

Any hints,tips or suggestions would be appreciated.

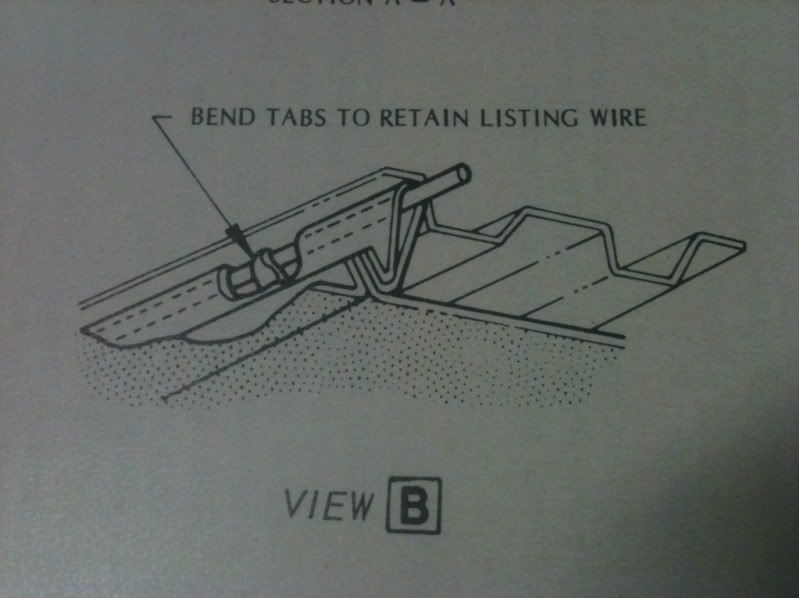

From the GMH Manual:

Posted Image

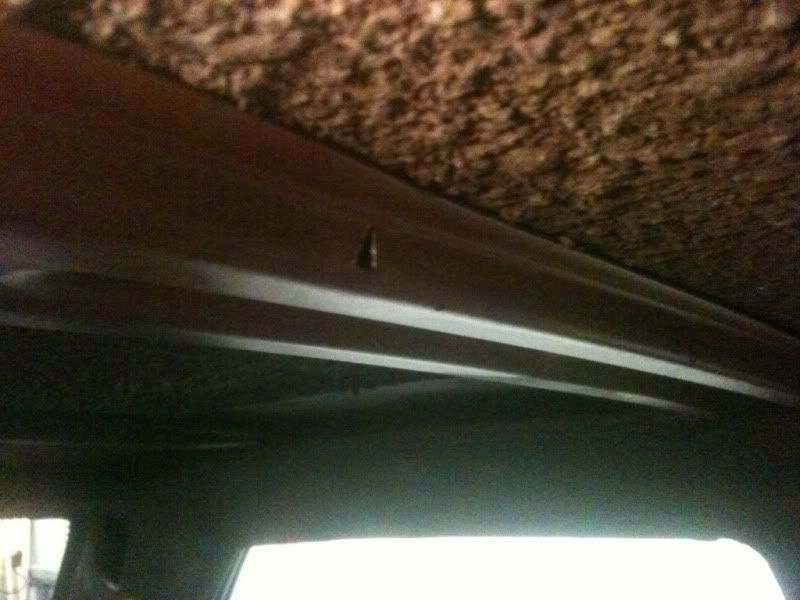

Intact tab

Posted Image

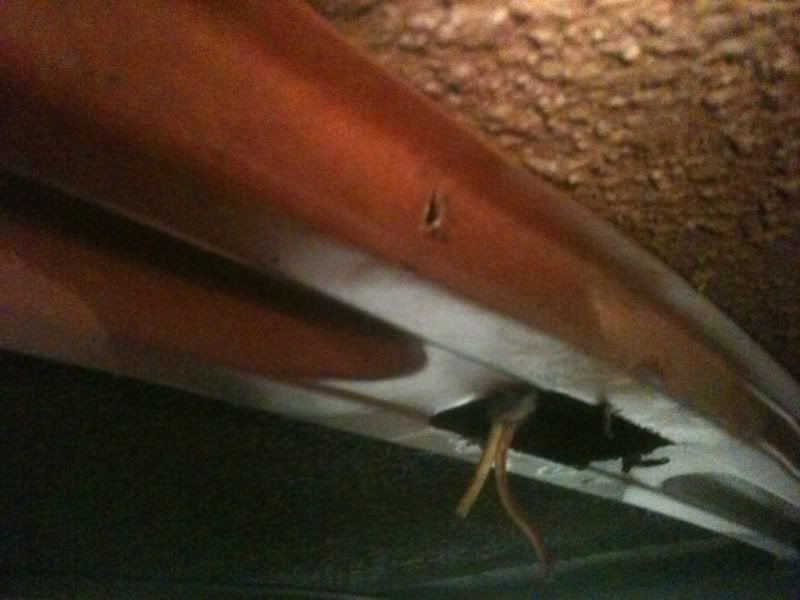

Missing tab

Posted Image

#2 rodomo

rodomo

    To advertise here, call 13TORANA

  • Members
  • PipPipPipPipPipPipPip
  • 14,917 posts
  • Name:R - O - B Dammit!
  • Location:Way out west of Melbourne Awstraylya
  • Joined: 10-December 05

Posted 02 November 2011 - 09:10 PM

Drill a small hole beside it. Find a small self tapper and a small washer. Put a bend in the washer, Screw the self tapper and washer in, hang your wire over it, then tighten the screw so the bent washer captures the wire.

#3 hanra

hanra

    Oh My, Don't you post alot

  • Members
  • PipPipPipPipPipPipPip
  • 6,327 posts
  • Name:Brad
  • Location:Far North Qld
  • Car:1975 LH SL/R 5000, 1967 Morris Cooper S, E36 BMW
  • Joined: 24-March 11

Posted 03 November 2011 - 04:23 PM

Good idea, however do I want to clamp the wire totally or still allow movement of the wire?

#4 HER 76

HER 76

    Forum Participant

  • Members
  • PipPip
  • 21 posts
  • Name:Katie and Scott
  • Location:Sunshine Coast
  • Car:Looking for a 76 LX Hatch
  • Joined: 27-October 11

Posted 03 November 2011 - 04:36 PM

I am fairly capable at most thing, however after doing one headlining, I found it to be a PIA. Next time i'll just pay someone to do it.
The headlining in question was for a XM Ford Falcon, so maybe that's why I had trouble.

#5 hanra

hanra

    Oh My, Don't you post alot

  • Members
  • PipPipPipPipPipPipPip
  • 6,327 posts
  • Name:Brad
  • Location:Far North Qld
  • Car:1975 LH SL/R 5000, 1967 Morris Cooper S, E36 BMW
  • Joined: 24-March 11

Posted 08 November 2011 - 03:10 PM

I guess most people get upholsterers to fit there roof linings?

#6 BIGCAV

BIGCAV

    Forum Member

  • Members
  • PipPipPip
  • 244 posts
  • Name:Cavan Keily
  • Location:bundoora, vic
  • Car:1982 xe fairmont ghia 351 + 1982 fd ltd 351
  • Joined: 21-April 10

Posted 08 November 2011 - 03:54 PM

how about a spring steel horse shoe clip? for instance something like a door handle clip etc

#7 hatch76

hatch76

    Forum Fan

  • Members
  • PipPipPipPip
  • 294 posts
  • Name:daniel
  • Location:wodside south australia
  • Joined: 08-June 09

Posted 08 November 2011 - 08:11 PM

I also bought a headliner from boom funk for my hatch and found it easy to install. I put the wires and rods in first, then started from the middle and worked out from there. I cut some old pinch weld into 50mm bits to hold the edges on. It fitted like a glove, was very happy.
Cheers

#8 mick74lh

mick74lh

    Forum Fixture

  • Members
  • PipPipPipPipPip
  • 1,080 posts
  • Location:melbourne
  • Car:LH Torana, VK Commy
  • Joined: 03-August 09
Garage View Garage

Posted 08 November 2011 - 10:29 PM

Rodomo's tip is perfect. Just follow the diagram of how it all goes together. Judging by the rest of the work you've done on your car it should be a piece of cake. Along all the pinch weld areas make sure you've got lots of stuff to secure the material while the contact adhesive goes off. Cut up some old pinch weld. And plenty of small clamps and someone to help would make it easier as well.

- Yeah sorry Daniel I missed that you mentioned using the old pinch weld. But it works well eh

Edited by mick74lh, 08 November 2011 - 10:30 PM.


#9 ribz0

ribz0

    Forum Fan

  • Members
  • PipPipPipPip
  • 402 posts
  • Name:Eric
  • Location:Perth WA
  • Car:LC Torana
  • Joined: 01-April 09

Posted 09 November 2011 - 06:12 AM

Great tips thanks guys!!

Im about to give it a go on mine as soon as I get it back from the painters.

:3gears:

#10 hanra

hanra

    Oh My, Don't you post alot

  • Members
  • PipPipPipPipPipPipPip
  • 6,327 posts
  • Name:Brad
  • Location:Far North Qld
  • Car:1975 LH SL/R 5000, 1967 Morris Cooper S, E36 BMW
  • Joined: 24-March 11

Posted 09 November 2011 - 02:01 PM

Yep got 2m of pinch weld that Ill cut into 50mm sections.

#11 Brad1979UC

Brad1979UC

    Forum Fixture

  • Members
  • PipPipPipPipPip
  • 683 posts
  • Location:Melbourne, VIC
  • Joined: 04-May 06

Posted 09 November 2011 - 10:56 PM

Having a second pair of hands to hold bits up certainly makes the job easier too.

It's easy enough to fit though, but make sure you use all of the hooks in the roof....otherwise it may not look right in the part you didn't use a hook.

When we did mine a hook broke off and I really didn't think much of it, and it's just a little inconsistent in that spot, otherwise it was an ebay buy that looks great :D. Good luck!

#12 UCV80

UCV80

    Forum Fixture

  • Members
  • PipPipPipPipPip
  • 1,604 posts
  • Name:Nathan
  • Location:Brisbane
  • Car:377ci Chev UC
  • Joined: 16-December 07

Posted 10 November 2011 - 06:39 AM

This happened to me last week while fitting mine, a tiny drill hole and a small screw worked a charm. I cut up pinch weld also, brilliant idea. Start from the middle and work your way outwards. Getting all the wrinkles out of the vinyl is geat fun.

#13 hanra

hanra

    Oh My, Don't you post alot

  • Members
  • PipPipPipPipPipPipPip
  • 6,327 posts
  • Name:Brad
  • Location:Far North Qld
  • Car:1975 LH SL/R 5000, 1967 Morris Cooper S, E36 BMW
  • Joined: 24-March 11

Posted 12 November 2011 - 09:50 PM

I used the trick of a small screw and a bent over washer. It has worked well. Made a start on it today. Its just held up by pinh weld at the moment.

Can I ask a BIG FAVOR..... Can someone please take a pic of the B pillar where the roof lining meets the pillar? Im not sure how high or low this part of the lining should be....


Posted Image

Edited by hanra, 12 November 2011 - 09:52 PM.


#14 hanra

hanra

    Oh My, Don't you post alot

  • Members
  • PipPipPipPipPipPipPip
  • 6,327 posts
  • Name:Brad
  • Location:Far North Qld
  • Car:1975 LH SL/R 5000, 1967 Morris Cooper S, E36 BMW
  • Joined: 24-March 11

Posted 13 November 2011 - 01:49 PM

Can I ask a BIG FAVOR..... Can someone please take a pic of the B pillar where the roof lining meets the pillar? Im not sure how high or low this part of the lining should be....

#15 EunUCh

EunUCh

    Forum Fixture

  • Members
  • PipPipPipPipPip
  • 976 posts
  • Location:Faaar North QLD
  • Car:Nothing special
  • Joined: 23-November 06

Posted 13 November 2011 - 02:57 PM

Attached File  HOOD LINE.jpg   54.56K   9 downloads

#16 hanra

hanra

    Oh My, Don't you post alot

  • Members
  • PipPipPipPipPipPipPip
  • 6,327 posts
  • Name:Brad
  • Location:Far North Qld
  • Car:1975 LH SL/R 5000, 1967 Morris Cooper S, E36 BMW
  • Joined: 24-March 11

Posted 13 November 2011 - 03:00 PM

Brilliant effort there NO BALLS. Thanks for that. I noticed your date is wrong in your pic though?

#17 hanra

hanra

    Oh My, Don't you post alot

  • Members
  • PipPipPipPipPipPipPip
  • 6,327 posts
  • Name:Brad
  • Location:Far North Qld
  • Car:1975 LH SL/R 5000, 1967 Morris Cooper S, E36 BMW
  • Joined: 24-March 11

Posted 13 November 2011 - 04:35 PM

Righteo, thanks to all the support from members here, I think I've got the right idea. Good one.


Posted Image

#18 hanra

hanra

    Oh My, Don't you post alot

  • Members
  • PipPipPipPipPipPipPip
  • 6,327 posts
  • Name:Brad
  • Location:Far North Qld
  • Car:1975 LH SL/R 5000, 1967 Morris Cooper S, E36 BMW
  • Joined: 24-March 11

Posted 15 November 2011 - 09:55 PM

So its coming along pretty well... Just need to glue up the passenger side rear pillar and then trim the excess.. Week long process this has been!!!

Posted Image

Posted Image

Posted Image

Posted Image

Posted Image

#19 boomfunk

boomfunk

    Forum Trimmer

  • Members
  • PipPipPipPipPip
  • 1,994 posts
  • Location:QLD
  • Joined: 07-December 05

Posted 16 November 2011 - 10:30 AM

Nice, looking good there, when its totally fitted are you able to email me some better quality photos if thats possible.. i dont have good ones of a 4 door torana

#20 hanra

hanra

    Oh My, Don't you post alot

  • Members
  • PipPipPipPipPipPipPip
  • 6,327 posts
  • Name:Brad
  • Location:Far North Qld
  • Car:1975 LH SL/R 5000, 1967 Morris Cooper S, E36 BMW
  • Joined: 24-March 11

Posted 16 November 2011 - 10:39 AM

Yep yep. Still keeping that in mind! Ill have to power up my good camera and try and get some shots at day time. Perhaps this weekend.

#21 ribz0

ribz0

    Forum Fan

  • Members
  • PipPipPipPip
  • 402 posts
  • Name:Eric
  • Location:Perth WA
  • Car:LC Torana
  • Joined: 01-April 09

Posted 16 November 2011 - 12:50 PM

Looking great!!

What adhesive will / did you use? Is a Kwik Grip type of glue ok to use when gluing the edges?

The pinch weld looks like its the goods to use as well!

:clap:

#22 hanra

hanra

    Oh My, Don't you post alot

  • Members
  • PipPipPipPipPipPipPip
  • 6,327 posts
  • Name:Brad
  • Location:Far North Qld
  • Car:1975 LH SL/R 5000, 1967 Morris Cooper S, E36 BMW
  • Joined: 24-March 11

Posted 16 November 2011 - 12:57 PM

Pretty sure its just a Selleys contact glue. Apply to both surfaces, leave for 5-10 then bring surfaces together. Pinch weld does an awesome job! Thanks to Boomfunk for the tip of there website!

#23 LH8VD69

LH8VD69

    Forum Fixture

  • Members
  • PipPipPipPipPip
  • 873 posts
  • Location:Perth
  • Car:LH SLRRRRR &VYII Clubbie R8 Cammed
  • Joined: 04-December 09

Posted 16 November 2011 - 01:43 PM

I guess most people get upholsterers to fit there roof linings?


I paid a upholsterer to do mine. He stripped out the old roof lining/ all old pillar velour that was glued on including the old velour door tops then fitted all the factory stuff including the vynal on the 'a' ? pillar at the front. All done in 24 hrs at a cost of $300. Money well spent I think ;-)

#24 hanra

hanra

    Oh My, Don't you post alot

  • Members
  • PipPipPipPipPipPipPip
  • 6,327 posts
  • Name:Brad
  • Location:Far North Qld
  • Car:1975 LH SL/R 5000, 1967 Morris Cooper S, E36 BMW
  • Joined: 24-March 11

Posted 16 November 2011 - 08:47 PM

That is a good price!


One small thing I did prior to fitting the headlining was to take a few bits of paper and mark out the positions of all the holes for the grab handles, sunvisor mounts and rear view mirror. Hopefully will save me having to poke around endlessly searching for a hole...?


Posted Image

Posted Image

Posted Image

#25 dunger

dunger

    Forum Participant

  • Members
  • PipPip
  • 4 posts
  • Location:sydney
  • Car:ss hatch
  • Joined: 23-October 11

Posted 17 November 2011 - 07:19 PM

where can i buy sienna roof lining trim in sydney for my ss hatch?
the trim code is 1916-65v (sienna)?
