lx fabricated front suspension

ideas anyone

  • Please log in to reply
138 replies to this topic

#1 ozyozyozy

ozyozyozy

    Forum Fixture

  • Members
  • PipPipPipPipPip
  • 830 posts
  • Location:perth
  • Joined: 13-February 08

Posted 11 June 2013 - 07:41 PM

gday everyone. bit of a story for this sorry but it paints the picture. dave(355lx) and myself have had loooong conversations about this, it started from what do we need to do to fit a better shock, which lead to the idea new lower and upper arms and different way of mounting shock and spring.

after doing targa south west, which is a rough event, I decided to give murry coote a call, for those who don't know he builds and services shocks for targa, rally, offroad and circuit. His question to me was, what is your goal out of this, do you want something that will be ok for the job or do you want to do it properly, I said if im going to spend money I want to do this properly, so that started a long conversation.

couple of points, for targa work he recommends using a reservoir shock to help with heat, monotube design, allows better control and better valving, the standard lower front mount of the shock is junk, if using the correct shock working properly it should be able to bend the lower mounting bar or and break the mounting bolts off the lower arm, very interesting.



so that leads me to this, cutting the spring mount ear off the crossmember to allow the mount of a proper coilover reservoir shock, eye, eye mount and moving the lower mount closer to the stub axle and raising the top mount, my goal is to have some caster camber adjustment in the lower control arms for fine tuning, and using rose joints at the pivots, dave is thinking a bush type rose joint for street use.



now after talking to an engineering mate, he made my serpentine style pulleys for those that have seen them, he has made a comment to me, if you can get a few people that are interested to share some costs he will make the arms and help cad design, we are talking crom moly that will be heat treated for extra strength at the welds.



so if your keen and have some ideas please put them up, its not going to happen over night but there is a couple of us serious about this.









#2 A9X

A9X

    A fortunate run

  • Members
  • PipPipPipPipPipPipPip
  • 5,023 posts
  • Name:Welby
  • Location:Perth
  • Joined: 09-November 05
Garage View Garage

Posted 11 June 2013 - 08:17 PM

you know i'm in.



#3 Evan

Evan

    Forum Fixture

  • Members
  • PipPipPipPipPip
  • 1,286 posts
  • Location:Perth Western Australia
  • Joined: 14-January 06
Garage View Garage

Posted 12 June 2013 - 12:07 AM

Count me in Daz.



#4 76lxhatch

76lxhatch

    That was easy!

  • Members
  • PipPipPipPipPipPipPip
  • 6,599 posts
  • Location:Unzud
  • Car:SS
  • Joined: 04-August 08
Garage View Garage

Posted 12 June 2013 - 07:10 AM

Probably beyond my budget but I've already been thinking about it after I saw what the US guys have been doing (some are supplied as kits, others custom)

http://www.pro-touri...1649#post871649

http://www.pro-touri...il-over-bracket


http://www.pro-touri...7498#post507498

Obviously with the Torana it would have to be kept relatively low at the top not to foul the chassis rail, but with the spring seat removed and a tubular upper arm for better clearance it must be possible to gain a bit more valuable length. Would be the ideal setup to get the bottom mount closer out to the wheel and change the lever ratio, there has to be some benefits in spring selection from that.

#5 Mort

Mort

    Lotsa Posts!

  • Members
  • PipPipPipPipPipPip
  • 2,758 posts
  • Name:Mort
  • Location:Moranbah, QLD.
  • Car:74 LH SL/R 4.2, 75 LH 4 door 186
  • Joined: 16-December 07
Garage View Garage

Posted 12 June 2013 - 11:21 AM

I can remember seeing a complete fabricated front end setup on eBay i think it was..



It might have been these guys.



http://www.ebay.com....169b5bed&_uhb=1



You could give them a ring to make sure.



#6 LXSS350

LXSS350

    Hatch Rat

  • Members
  • PipPipPipPipPip
  • 1,840 posts
  • Location:Perth
  • Car:2 doors and hatch
  • Joined: 30-September 09
Garage View Garage

Posted 13 June 2013 - 11:25 PM

Depends on what the racing class laws allows. The stock arm mounting points and lengths/ratio are not ideal. The lower arm is too short and the pivot, shock, spring relationship is very poor. Coil over is the way to go. The whole caster, camber adjustment also needs a total re-think. In the standard components the up-sprung weight vs strength is seriously compromised.



Take a good look at some of the many ways other people have used to get an idea of what might work on a torana and see what fits in the rules either cams or licensing.



hrdp_1004_04_+independent_front_suspensi



stifflers-adjustable-front-upper-control









$(KGrHqNHJE4FG!,ryk-WBRmyyTDJyQ~~60_57.J






#7 Toranamat69

Toranamat69

    Forum R&D Officer

  • Members
  • PipPipPipPipPip
  • 1,876 posts
  • Location:Brisbane
  • Joined: 07-November 05

Posted 14 June 2013 - 09:20 AM

I am very interrested in what you get going here - I have wanted to do the coil overs over up front for ages by chopping off the top spring tower and using tubular arms.



Notice all those aftermarket arms use bushes for the inner arm pivots not rose joints - rose joints are not really ieal for that application.



#8 ozyozyozy

ozyozyozy

    Forum Fixture

  • Members
  • PipPipPipPipPip
  • 830 posts
  • Location:perth
  • Joined: 13-February 08

Posted 14 June 2013 - 09:02 PM

This is awesome, what I was hoping for some pics and info.
SOME class rules don't allow a fabricated subframe but are free for suspension arm pick up points, and other rules do allow a change of subframe.
At this stage I'm looking at the original subframe just modified and strengthened due to this been allowed in more areas.
I'm thinking 2 pieces to the lower arm not a one piece item, if you have seen Steve coads monaro or a v8 supercar lower arms this will give you a better idea of my angle, you can buy bush joints that can screw in place of a typical rosé joint. We want to make so if you don't want to put a full house race shock you can still source a more budget friendly coil over, Dave has found a company in the u.s. that fit that side of things.
Due to been busy it will still be a month or two before I start getting into it, for the time been want lots of ideas.

#9 A9X

A9X

    A fortunate run

  • Members
  • PipPipPipPipPipPipPip
  • 5,023 posts
  • Name:Welby
  • Location:Perth
  • Joined: 09-November 05
Garage View Garage

Posted 14 June 2013 - 09:14 PM

Dazza, i've got a spare shell here you can use as a working template, as well as a couple of spare k frames.



#10 dattoman

dattoman

    Do I feel lucky? Well, do ya, punk?

  • Administrators
  • PipPipPipPipPipPipPip
  • 15,639 posts
  • Name:Neil
  • Location:Perth Western Australia
  • Car:LX SS , LH sedan, 76 Cadillac , 3 x dattos
  • Joined: 04-February 07

Posted 14 June 2013 - 09:25 PM

Daz already has my spare subframe



#11 A9X

A9X

    A fortunate run

  • Members
  • PipPipPipPipPipPipPip
  • 5,023 posts
  • Name:Welby
  • Location:Perth
  • Joined: 09-November 05
Garage View Garage

Posted 14 June 2013 - 09:28 PM

all good

Datto can i chase you again for some brake lines please, both hard and soft



#12 dattoman

dattoman

    Do I feel lucky? Well, do ya, punk?

  • Administrators
  • PipPipPipPipPipPipPip
  • 15,639 posts
  • Name:Neil
  • Location:Perth Western Australia
  • Car:LX SS , LH sedan, 76 Cadillac , 3 x dattos
  • Joined: 04-February 07

Posted 14 June 2013 - 09:41 PM

Sure thing mate



Just need to get my flaring tool back

Is your sturdy bench set up ?



#13 A9X

A9X

    A fortunate run

  • Members
  • PipPipPipPipPipPipPip
  • 5,023 posts
  • Name:Welby
  • Location:Perth
  • Joined: 09-November 05
Garage View Garage

Posted 14 June 2013 - 09:56 PM

just have to bolt it down



#14 LXSS350

LXSS350

    Hatch Rat

  • Members
  • PipPipPipPipPip
  • 1,840 posts
  • Location:Perth
  • Car:2 doors and hatch
  • Joined: 30-September 09
Garage View Garage

Posted 14 June 2013 - 11:38 PM

I am very interrested in what you get going here - I have wanted to do the coil overs over up front for ages by chopping off the top spring tower and using tubular arms.



Notice all those aftermarket arms use bushes for the inner arm pivots not rose joints - rose joints are not really ieal for that application.





I use the Del-Sphere's which work well on the street and track. These use Delrin bushing cups.





Del-Sphere-Pivot-Joint-34-16-Right-Hand-Del-Sphere-Pivot-Joint-34-16-Right-Hand-Del-Sphere-Pivot-Joint-34-16-Right-Hand-



#15 76lxhatch

76lxhatch

    That was easy!

  • Members
  • PipPipPipPipPipPipPip
  • 6,599 posts
  • Location:Unzud
  • Car:SS
  • Joined: 04-August 08
Garage View Garage

Posted 15 June 2013 - 07:21 AM

^ Are they what the US guys call 'Johnny joints'?

If the plan was to relocate the arm mounts at all there could be some benefit to setting up the cross member to run Corvette or even Mustang II components, that would open up a massive range of cheap options from the US for control arms and spindles, brakes etc. Not sure how the steering rack options would go with RHD but maybe:
http://www.gmh-toran...e-3#entry710559

#16 434LX

434LX

    Forum Fan

  • Members
  • PipPipPipPip
  • 370 posts
  • Name:Andrew
  • Location:Perth
  • Car:77 LX 4 Door, 434 Chev, Coan manualised TH350, 9"
  • Joined: 31-December 10

Posted 15 June 2013 - 09:57 AM

Sure thing mate



Just need to get my flaring tool back



Top bit of gear that Huh ?  :innocent:





I'm also interested in the front end development.

PM me when you work out some costs



#17 ozyozyozy

ozyozyozy

    Forum Fixture

  • Members
  • PipPipPipPipPip
  • 830 posts
  • Location:perth
  • Joined: 13-February 08

Posted 25 June 2013 - 07:46 PM

I like the idea of those del-spheres, especially for a road car setup.

been speaking to dave regularly about this haha, might get out of control, we will get stuck into it when our time tables and garages are clear enough to get into it.



Im a bit worried about using your subframe neil, don't want to cut something up that is not mine, I am hoping to take delivery of another 4 door in next few months so probably use that.



steering racks haven't been a big worry, as the Subaru conversion I think is a pretty nice simple job. I have email flaming river about the possibility of a RHD quick ratio version, as they are making brand new steering racks for custom applications. they responded with, they require some details to see if it is feasible, but it is def a possibility, I know you can get a quick Subaru version.



#18 355LX

355LX

    Long Term Project

  • Members
  • PipPipPipPipPip
  • 604 posts
  • Name:Dave
  • Location:Perth, WA
  • Car:LX hatch
  • Joined: 08-November 05

Posted 29 June 2013 - 11:48 PM

Hi all, sorry I forgot to check this thread out after Daz mentioned it. The Del-spheres were exactly what I had in mind.



LXSS350, the pictures of the crossmembers lined up and assembled, do you have any further information on those? Are they a CRS creation, I see a sticker that suggests that? They are certainly close to what I had in mind.



Once my shed is built and I'm settled in, the first thing I was going to play with was my spare cross member.



Thanks for the input everyone, all valuable stuff! Daz, do you think we have the numbers for Dennis yet? I think you could safely say there's 4-5 of us locally who are committed(straight jacket optional!!).



Dave



Edit: after a quick search I found it. They've moved the outrigger mounts to be forward facing instead of rear facing, I'm guessing to allow more room for building pipes. They come with an engineers report as well.



 http://www.ebay.com....=item257dba6b56


Edited by 355LX, 29 June 2013 - 11:58 PM.


#19 LXSS350

LXSS350

    Hatch Rat

  • Members
  • PipPipPipPipPip
  • 1,840 posts
  • Location:Perth
  • Car:2 doors and hatch
  • Joined: 30-September 09
Garage View Garage

Posted 30 June 2013 - 12:50 AM

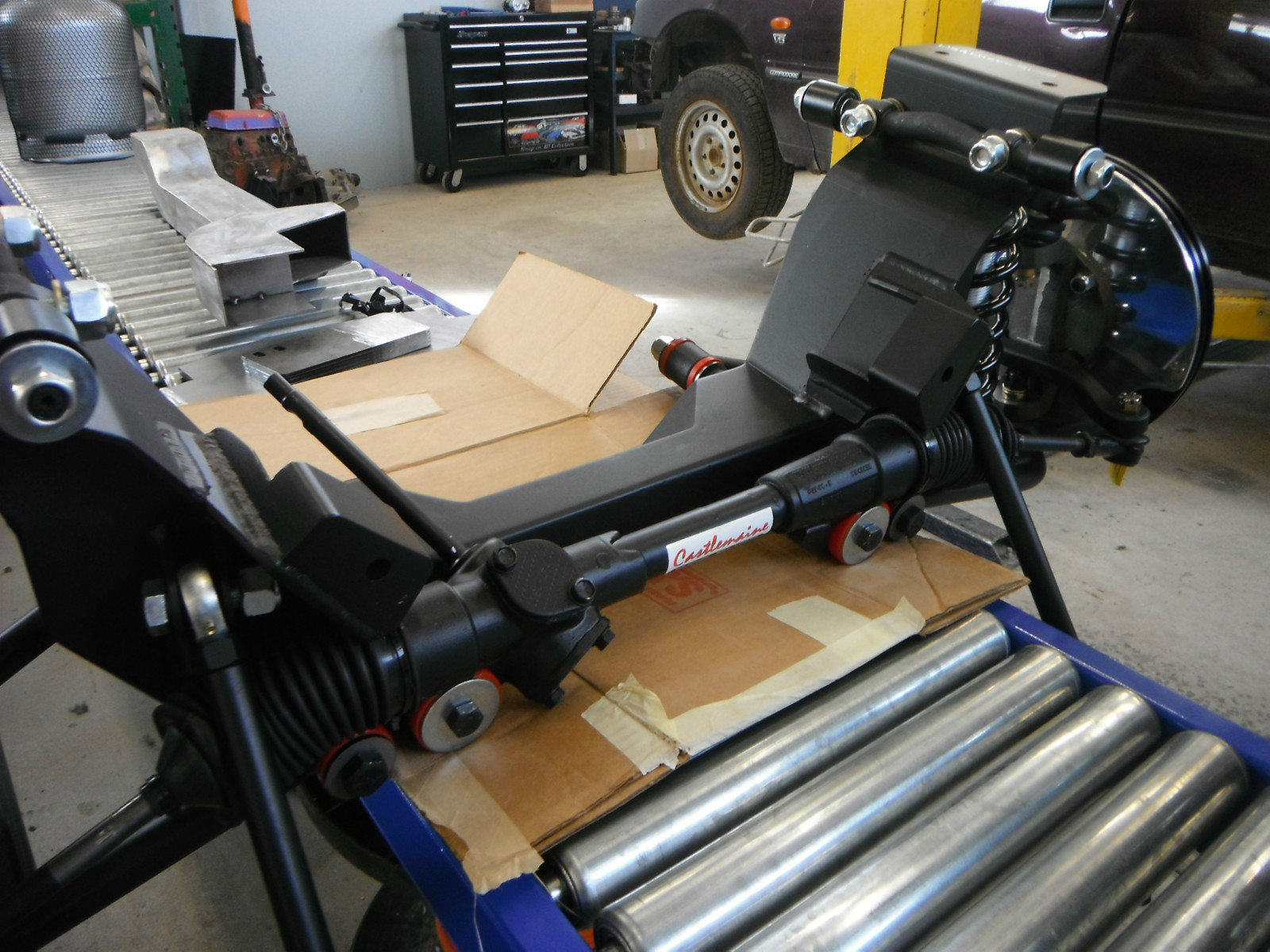

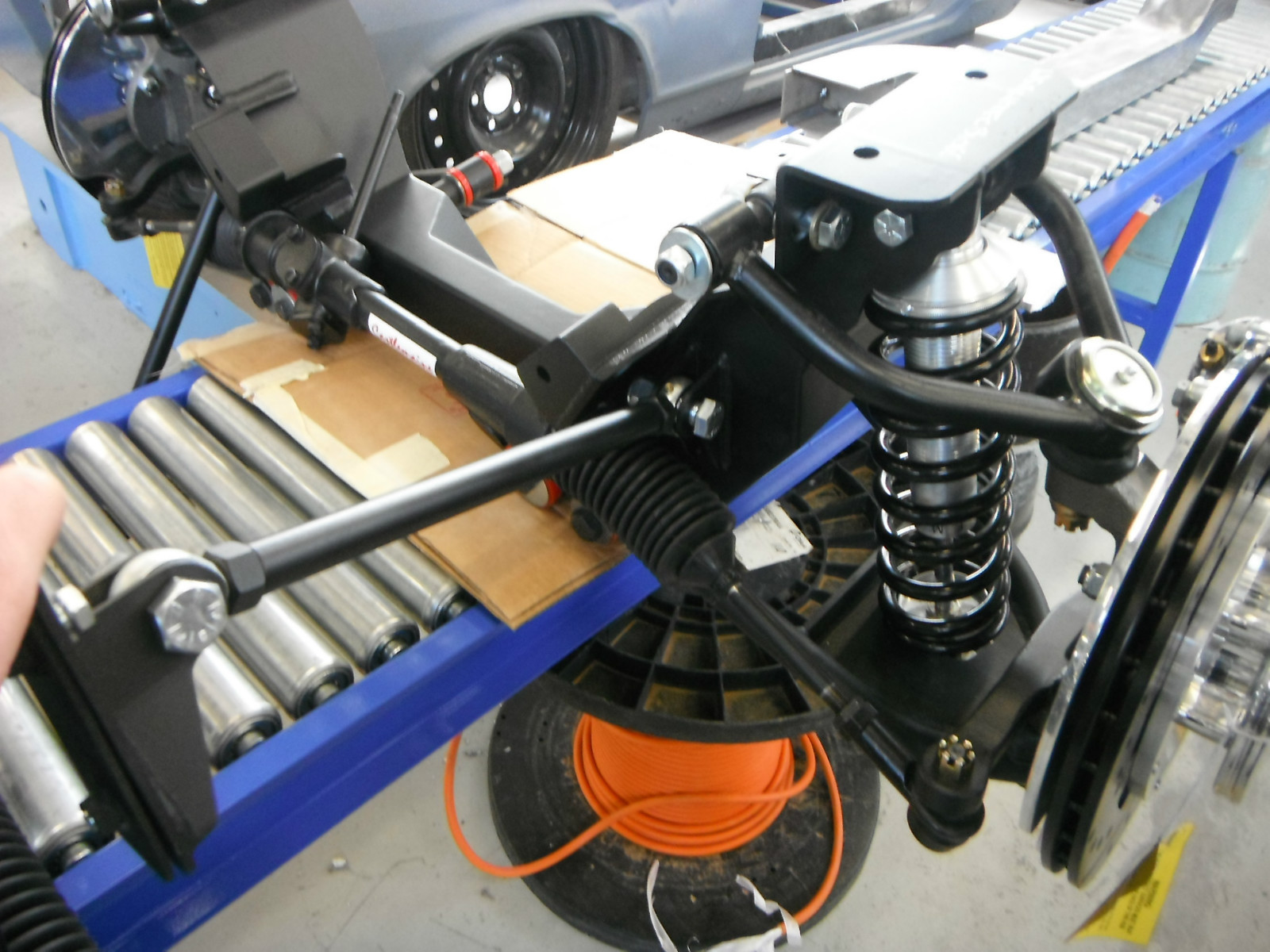

355LX yes those are produced by crs. From $4500 complete with brakes.



 THIS KIT IS A BOLT IN ITEM, USING THE ORIGINAL MOUNTING POSITION, WE CAN SUPPLY TWO TYPES OF BRAKE SET UPS, WILWOOD(PICTURED) OR A MORE STANDARD STYLE LOOKING 280MM LOOKING BRAKE KIT.



THIS KIT WILL INCLUDE

CROSSMEMBER

STUB AXLES

UPPER AND LOWER CONTROL ARMS

COIL OVERS

CALIPERS

ROTORS

RACK & PINION

ENGINE MOUNT POST

TRAILING ARMS

BRACKETS

FITTING INSTRUCTIONS

BOLT KIT

 WILWOOD BRAKE SET UP ($5,500)

STANDED BRAKE SET UP ($4,500)

THESE ARE MADE TO SUIT SO THERE MAYBE A WEEK IN FABRICATION TIME.

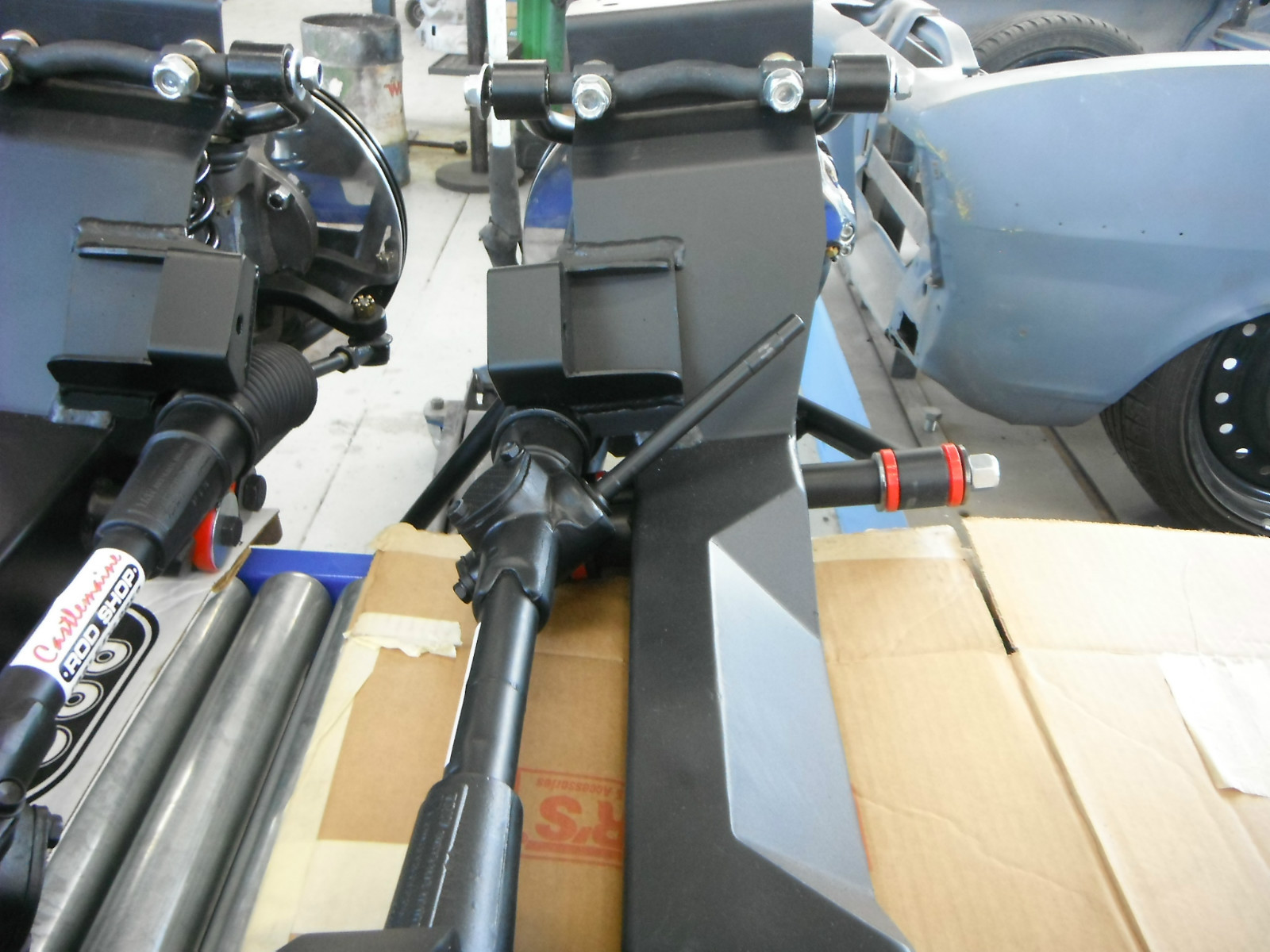

$T2eC16NHJHIFFhkutnJLBRisU6)TlQ~~60_57.J$(KGrHqJHJEkFGL!,SqGhBRmy)Rw7Tg~~60_57.J$(KGrHqIOKp0E-FYi,7vnBRisUpQweg~~60_57.J$(KGrHqFHJE!FE3uUUq-tBRisUkdO9Q~~60_57.J$(KGrHqRHJFMFErR1SgulBRisVIJuEg~~60_57.J









http://www.ebay.com....=item257dba6b56



The Del-spheres work really well and can take track punishment. They are far better than any of the popular typical bush materials. Rose joints also work but are harsh for cars that see the street. The key to any changes you make to the poor standard geometry is watching your roll centres and getting them to work. I find that by using a chassis watts link with variable roll centre adjustment is one of the best mods you can do.








The other is to fix the binding issue cause by diff centralisation design (top arm angle) and replace them with a three link or parallel 4 link.



#20 uctorry

uctorry

    Forum Fan

  • Members
  • PipPipPipPip
  • 272 posts
  • Name:Stuart
  • Location:Hervey Bay
  • Car:Uc hatch
  • Joined: 25-July 10

Posted 30 June 2013 - 01:30 PM

Can these be bought with out brakes and steering rack and can they be changed to com stud pattern as im building Neils brake set up and using Lens  steer rack

Thanks

Stuart



#21 355LX

355LX

    Long Term Project

  • Members
  • PipPipPipPipPip
  • 604 posts
  • Name:Dave
  • Location:Perth, WA
  • Car:LX hatch
  • Joined: 08-November 05

Posted 30 June 2013 - 01:48 PM

LXSS350, yeah definitely the rear roll center is an area for improvement, I think the factory rear roll center is up somewhere around the hatch lid glass!



Daz already has a watts setup in the rear of his, and I hope he does mind me revealing he has just finished converting to a 3 link setup which is what I will also be doing with my other hatch. The combination of the factory converging 4 link and a watts link or panhard results in the two fighting each other and teh potential for the rear to bind.



Stuart, a quick call to CRS on Monday will almost certainly answer your question.



#22 LXSS350

LXSS350

    Hatch Rat

  • Members
  • PipPipPipPipPip
  • 1,840 posts
  • Location:Perth
  • Car:2 doors and hatch
  • Joined: 30-September 09
Garage View Garage

Posted 30 June 2013 - 10:36 PM

The three link works best for a Torana floorplan and loosing the rear seat is not an issue for me. Once you start changing the front end to a better design, your roll centres become even more important. The design and sheer size of the standard Kframe is a real restriction with the room available. It all makes it very hard to get the ideal pivot points, length's etc for your control arms and coilovers (if you are chasing good geometry). Standard suspension travel in torana's is pretty much non existent when setting up for race, but this is only to make-up for the poor design and layout of the standard setup.



For those who want to work out their rear roll centre.







Ozyozyozy made mention of Steve's Monaro which is a decent handling car.The HQ has a much better chassis position (and enough room to swing a cat vs the restrictive torana layout) . Although a vastly different front chassis you can still take some good ideas from it and MSF gear ( http://msfracingcomponents.com.au ) is a good place to look for some bits to help.











I have no idea if crs sell separate and no experience with their setup.



#23 LXSS350

LXSS350

    Hatch Rat

  • Members
  • PipPipPipPipPip
  • 1,840 posts
  • Location:Perth
  • Car:2 doors and hatch
  • Joined: 30-September 09
Garage View Garage

Posted 03 July 2013 - 03:09 AM

One thing that I forgot if you guys don't have a suspension program you can use Vsusp online which gives you an idea of how your changes effect the geometry.



VSusp ("Vehicle Suspension") is: A tool that provides an easy way to see what happens to a vehicle's suspension after:

  • It goes into bump/droop or roll
  • Altering the tire sizes
  • Substituting different length control arms
  • Moving control arm pickup locations
  • Lowering the vehicle
  • Adding spacers at the ball joints
  • Changing wheel offset or diameter

... and others

Things that can be observed under various conditions include:

  • Roll center location and movement
  • Tire Camber
  • Scrub radius
  • Front view swing-arm length



Start Here:



http://www.vsusp.com....roll_center.y}



#24 sjp67m

sjp67m

    Forum Fixture

  • Members
  • PipPipPipPipPip
  • 546 posts
  • Name:Stav
  • Location:Darwin
  • Car:Lx Ss hatch
  • Joined: 06-February 12

Posted 03 July 2013 - 07:43 AM

Dont know if its been mentioned here but I spoke to crs and told them I had a wilwood kit to suit hq stubs and a powersteering rack to suit torana so could they price me minus these items? They refused their reason being that stubs are custom made and run diffent wheel bearings and if not sold complete they wont give out a certficate needed for rego purposes.

#25 Vick

Vick

    Grumpy old man

  • Members
  • PipPipPipPipPip
  • 1,191 posts
  • Name:Vick
  • Location:Vic
  • Joined: 19-November 12

Posted 03 July 2013 - 09:04 PM

Do you have more details on the stubs? Are they just drop stubs?
