Gear shift hole dimensions for LX

Started by slar , Jul 17 2013 07:31 PM

Please log in to reply

17 replies to this topic

#1 slar

Forum Fan

Members
498 posts

Name:AL
Location:Newcastle
Car:Rusty the Torana......Nearly complete
Joined: 14-September 09

View Garage

Posted 17 July 2013 - 07:31 PM

Hi, can anyone give me nice accurate measurements for the size and position of the tunnel gear shift hole in a LX please.

My car was originally a column shift so I have a virgin tunnel ( that doesn't sound right) lol

I would like to use all the correct sealing boots and rubbers so I need it as per factory.

Probably already on hear some where but I searched with no result.

Appreciate your help

Thanks

AL

Back to top

#2 slar

Forum Fan

Members
498 posts

Name:AL
Location:Newcastle
Car:Rusty the Torana......Nearly complete
Joined: 14-September 09

View Garage

Posted 18 July 2013 - 03:56 PM

Any one? pretty please lol

Back to top

#3 torana_nick

Forum Fixture

Members
759 posts

Name:Nick
Location:victoria
Car:LH Torana Project
Joined: 11-December 11

Posted 18 July 2013 - 04:43 PM

Surely some one could measure the hole for you.
If I had an original one I would of done if sorry I can't help.

Back to top

#4 slar

Forum Fan

Members
498 posts

Name:AL
Location:Newcastle
Car:Rusty the Torana......Nearly complete
Joined: 14-September 09

View Garage

Posted 18 July 2013 - 05:30 PM

That's ok Nick, im sure theres someone out there with a resto in progress that can run a tape measure over the tunnel for me and supply a pic or two.

cheers

Al

Back to top

#5 tuxedoss

Forum Fixture

Members
1,026 posts

Name:Brett
Location:Sydney
Car:ss
Joined: 29-July 11

Posted 18 July 2013 - 06:29 PM

Mines upside down on the rotisserie at the moment but ill take some measurements for you later tonight. You want the size of the hole and the position?

Back to top

#6 slar

Forum Fan

Members
498 posts

Name:AL
Location:Newcastle
Car:Rusty the Torana......Nearly complete
Joined: 14-September 09

View Garage

Posted 18 July 2013 - 06:53 PM

Yes thankyou, the size and position would be great.

Mines on the rotisserie as well and its as good a time as any to cut it out.

Thanks Brett

Cheers Al

Back to top

#7 tuxedoss

Forum Fixture

Members
1,026 posts

Name:Brett
Location:Sydney
Car:ss
Joined: 29-July 11

Posted 18 July 2013 - 10:24 PM

Here's the dimensions I got. Hope you have that little hole in the middle as thats what i measured off. If not I'll get another reference. The hole dimensions are a little rough as its a curve but I measured the straight distance

Attached Files

dimension.jpg 242.79K 49 downloads

Back to top

#8 slar

Forum Fan

Members
498 posts

Name:AL
Location:Newcastle
Car:Rusty the Torana......Nearly complete
Joined: 14-September 09

View Garage

Posted 19 July 2013 - 05:14 AM

Beauty mate thanks heaps thats exactly what i needed
Cheers

Back to top

#9 tuxedoss

Forum Fixture

Members
1,026 posts

Name:Brett
Location:Sydney
Car:ss
Joined: 29-July 11

Posted 19 July 2013 - 08:55 AM

when i said the hole dimensions were a bit rough i meant the bolt holes for the boot.,not the sqaure hole

Back to top

#10 slar

Forum Fan

Members
498 posts

Name:AL
Location:Newcastle
Car:Rusty the Torana......Nearly complete
Joined: 14-September 09

View Garage

Posted 19 July 2013 - 09:49 AM

Ok no worries, i will cut the hole the same shape and leave the screw holes until i get a new boot.
Thanks again

Back to top

#11 tuxedoss

Forum Fixture

Members
1,026 posts

Name:Brett
Location:Sydney
Car:ss
Joined: 29-July 11

Posted 19 July 2013 - 11:15 AM

there is a square metal plate that goes around the edge of the boot, thats what holds it in place. I'd cut the hole first then wait till you get a boot and retaining plate to mark out the bolt holes as its hard to measure due to the curve.

Back to top

#12 _j.e.d._

Guests

Posted 19 July 2013 - 12:26 PM

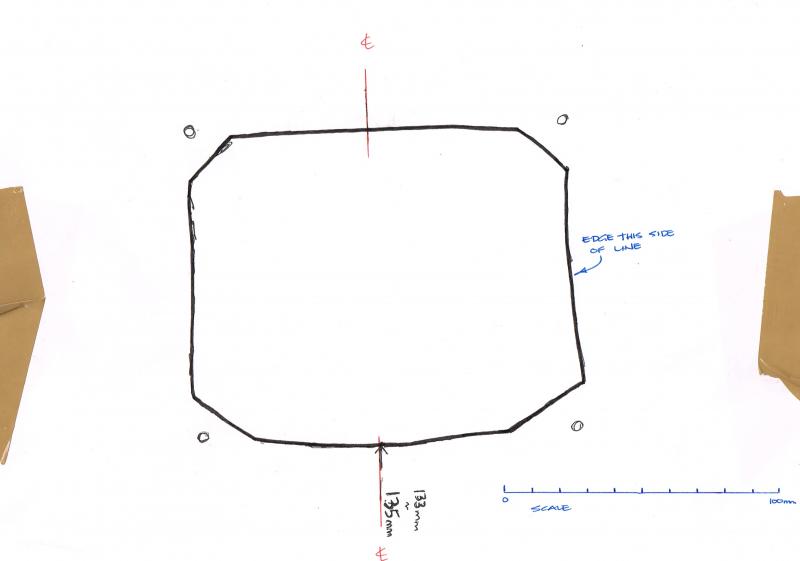

Hi Al, here is a template I sketched from the top if it's any help. I just lay an A4 piece of paper over the hole & taped it down each side (fairly close to the curve) & sketched the lines & hole locations on that. I've marked the centerline in red that is from the reference hole Brett measured from to the centre of the console bracket in front (shown in pic) the back edge of the hole measured about 133-135mm same as Brett's as well. So if you can print this out to scale (added scale to the sketch to help) it might work for you. The hole diameter is about 12-13mm & it has similar nut clips that are used for the front guards. Hope this helps along with Brett's dimensions

Edited by j.e.d., 19 July 2013 - 12:33 PM.

Back to top

#13 slar

Forum Fan

Members
498 posts

Name:AL
Location:Newcastle
Car:Rusty the Torana......Nearly complete
Joined: 14-September 09

View Garage

Posted 19 July 2013 - 01:03 PM

Very good fellas, thanks for the effort.
Should be able to get it spot on with all this info.
Saturday will be the day to cut it out.
Appreciate it
Al

Back to top

#14 tuxedoss

Forum Fixture

Members
1,026 posts

Name:Brett
Location:Sydney
Car:ss
Joined: 29-July 11

Posted 19 July 2013 - 01:31 PM

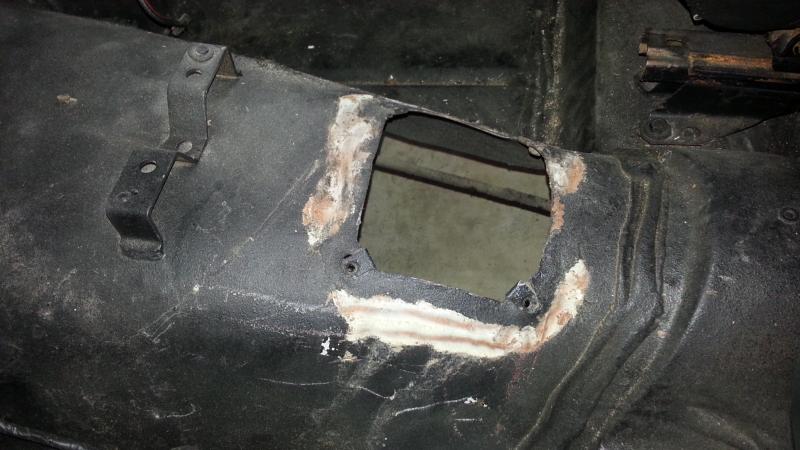

Another distance for you is in the picture above the hole in the centre of the console bracket where it touches the tunnel its 125mm to the front edge of the square hole, check this against the 133mm to the back edge of the hole and you shold be right

Back to top

#15 _330OLX_

Guests

Posted 19 July 2013 - 06:21 PM

If I recall correctly there is a difference in the position of the hole between 4 cylinder manual cars & the rest.
The Sunbirds that I converted years ago needed their shifter holes modified to take an M20 shifter as the Opel shifter sat in a different spot.
Were any of the cars that these measurements were taken from originally 4 cylinder manual cars?

Back to top

#16 BIG KEV

Forum Fixture

Members
1,202 posts

Name:Kevin
Location:SYDNEY
Car:LHSLR5000 and The 6LT Project
Joined: 02-January 12

Posted 19 July 2013 - 06:41 PM

Those measurements are near to the mm same as mine just measured I would go with that

Back to top

#17 tuxedoss

Forum Fixture

Members
1,026 posts

Name:Brett
Location:Sydney
Car:ss
Joined: 29-July 11

Posted 19 July 2013 - 08:15 PM

If I recall correctly there is a difference in the position of the hole between 4 cylinder manual cars & the rest.The Sunbirds that I converted years ago needed their shifter holes modified to take an M20 shifter as the Opel shifter sat in a different spot.Were any of the cars that these measurements were taken from originally 4 cylinder manual cars?

V8 M21 for me.
