XU1 Swaybar Clamp


  • Please log in to reply
94 replies to this topic

#26 RallyRed

RallyRed

    Oh My, Don't you post alot

  • Members
  • PipPipPipPipPipPipPip
  • 7,805 posts
  • Name:Col
  • Location:NSW
  • Car:LC GTR etc
  • Joined: 02-October 11

Posted 21 October 2016 - 06:16 PM

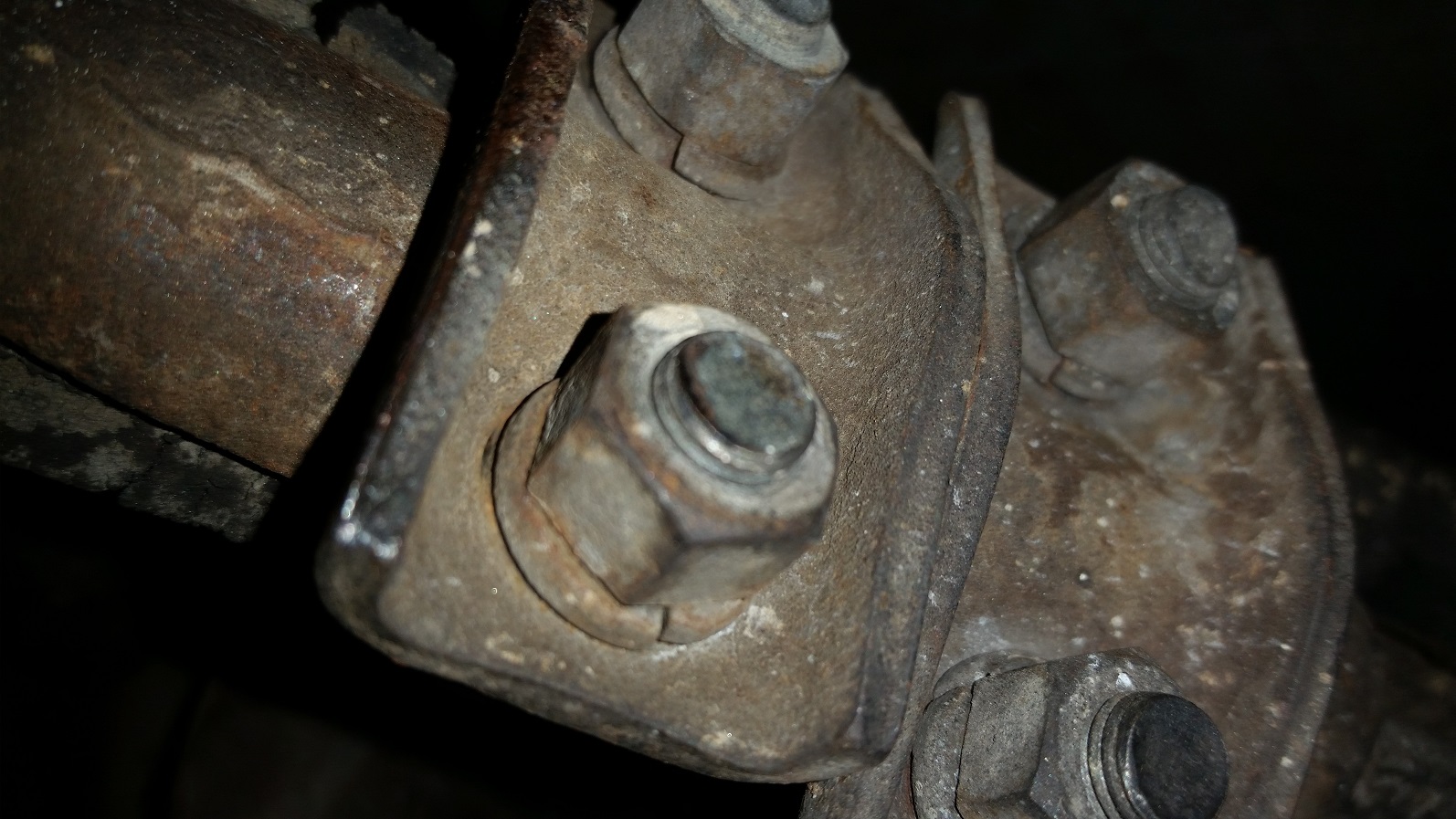

For what it;s worth Geno...heres a 12/70 Adelaide





Attached Files



#27 Bazza

Bazza

    ǝɹnʇxıɟ ɯnɹoɟ

  • Members
  • PipPipPipPipPipPipPip
  • 4,289 posts
  • Location:Outer Melb West Vic
  • Car:ɐuɐɹoʇ
  • Joined: 11-November 05

Posted 21 October 2016 - 06:24 PM

HI Col



The revised type. BTW they are mounted incorrectly.



Your mission, if you accept it, is to establish "In what manner are they incorrectly fitted?"



Cheers



Bazza



#28 S pack

S pack

    Scrivet Counter

  • Members
  • PipPipPipPipPipPipPip
  • 15,522 posts
  • Name:Dave
  • Location:Luggage Point
  • Car:73 LJ
  • Joined: 25-January 10

Posted 21 October 2016 - 06:30 PM

HI Col



The revised type. BTW they are mounted incorrectly.



Your mission, if you accept it, is to establish "In what manner are they incorrectly fitted?"



Cheers



Bazza

Also, is that rubber insertion strip original fitment?



#29 Bazza

Bazza

    ǝɹnʇxıɟ ɯnɹoɟ

  • Members
  • PipPipPipPipPipPipPip
  • 4,289 posts
  • Location:Outer Melb West Vic
  • Car:ɐuɐɹoʇ
  • Joined: 11-November 05

Posted 21 October 2016 - 06:44 PM

Dave



I thought that was odd too, but can't find any reference to it. In any event, that's not the answer.



Cheers



Bazza



#30 S pack

S pack

    Scrivet Counter

  • Members
  • PipPipPipPipPipPipPip
  • 15,522 posts
  • Name:Dave
  • Location:Luggage Point
  • Car:73 LJ
  • Joined: 25-January 10

Posted 21 October 2016 - 06:59 PM

Dave



I thought that was odd too, but can't find any reference to it. In any event, that's not the answer.



Cheers



Bazza

Yeah it's not the answer to the clamp question but it's still a valid question on a different issue.



Bazza, that reference you found about the GTR stabilizer in Nov 1970. What publication was that in if you don't mind me asking? There is no reference to it in the October - December 1970 Dealer Service Letters. Any service issues like that are usually published in the Dealer Service Letters.



Cheers

Dave.



#31 RallyRed

RallyRed

    Oh My, Don't you post alot

  • Members
  • PipPipPipPipPipPipPip
  • 7,805 posts
  • Name:Col
  • Location:NSW
  • Car:LC GTR etc
  • Joined: 02-October 11

Posted 21 October 2016 - 07:00 PM

Geez you blokes are hard markers......I went down the shed,layed on my back ,took a pic,  blah blah.....and are you happy?..Nuh.



LOL



p.s I remeber back in the day, they used to creak and groan a bit under hard conditions...maybe the orig owner thought he was on a winner ?


Edited by RallyRed, 21 October 2016 - 07:02 PM.


#32 Kevrev

Kevrev

    Forum Fan

  • Members
  • PipPipPipPip
  • 406 posts
  • Name:Kevin
  • Location:Rural Vic
  • Car:73 LJ GTR, 77 LX SS 253 Manual
  • Joined: 21-August 14
Garage View Garage

Posted 21 October 2016 - 07:41 PM

12/73 Brisbane.

At best three quarters right (one nut missing!)

At least these ones are a fair distance apart, which I thought was the way they should be

Attached Files



#33 S pack

S pack

    Scrivet Counter

  • Members
  • PipPipPipPipPipPipPip
  • 15,522 posts
  • Name:Dave
  • Location:Luggage Point
  • Car:73 LJ
  • Joined: 25-January 10

Posted 21 October 2016 - 07:57 PM

12/73 Brisbane.

At best three quarters right (one nut missing!)

At least these ones are a fair distance apart, which I thought was the way they should be

Sorry Kev, still not the correct fitment.



#34 Ice

Ice

    Cool

  • Members
  • PipPipPipPipPipPipPip
  • 15,103 posts
  • Name:Gene
  • Location:Galaxy's away from Ipswich
  • Car:77 HZ Sandman Van
  • Joined: 03-January 07

Posted 21 October 2016 - 07:58 PM

12/73 Brisbane.
At best three quarters right (one nut missing!)
At least these ones are a fair distance apart, which I thought was the way they should be

Dodgy

#35 Kevrev

Kevrev

    Forum Fan

  • Members
  • PipPipPipPip
  • 406 posts
  • Name:Kevin
  • Location:Rural Vic
  • Car:73 LJ GTR, 77 LX SS 253 Manual
  • Joined: 21-August 14
Garage View Garage

Posted 21 October 2016 - 08:16 PM

Hi Dave I didn't think they were right, that's just the way they were on the car when I bought it! I reckon the clamps need to be swung around so the nuts point straight down in the photo.

 And Gene what's dodgy? Me or my car? Or both? LOL!




Edited by Kevrev, 21 October 2016 - 08:18 PM.


#36 Bazza

Bazza

    ǝɹnʇxıɟ ɯnɹoɟ

  • Members
  • PipPipPipPipPipPipPip
  • 4,289 posts
  • Location:Outer Melb West Vic
  • Car:ɐuɐɹoʇ
  • Joined: 11-November 05

Posted 21 October 2016 - 08:34 PM

Hi

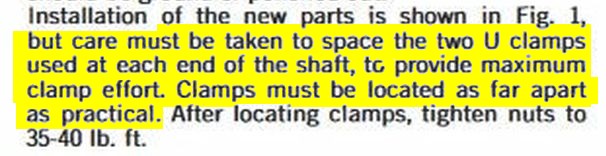

Well, despite Kev missing one of his nuts - he is closest to the pin.



Note also the revised torque specifications - from the original 8 -10 lb.ft. (as per the LC Shop Manual) to 35-40 lb.ft.



Col - Thank you for your sacrifice, the Torana fraternity specifically, and the free world in general, owe you a debt of gratitude in furthering the body of knowledge surrounding GTR stabiliser U-bolts. :)



Dave - around Nov-Dec 1967, I signed the "Official Secrets Act', an undertaking that I do not take lightly :)



Cheers



Bazza





Attached Files



#37 TOERUNNER

TOERUNNER

    Forum Fixture

  • Members
  • PipPipPipPipPip
  • 618 posts
  • Name:RODNEY
  • Location:central Qld
  • Car:73 lj gtr 73 lj 2 dr S
  • Joined: 01-July 09

Posted 21 October 2016 - 09:09 PM

dumb question but did all gtr's have sway bars



#38 S pack

S pack

    Scrivet Counter

  • Members
  • PipPipPipPipPipPipPip
  • 15,522 posts
  • Name:Dave
  • Location:Luggage Point
  • Car:73 LJ
  • Joined: 25-January 10

Posted 21 October 2016 - 09:09 PM

Hi



Well, despite Kev missing one of his nuts - he is closest to the pin.



Note also the revised torque specifications - from the original 8 -10 lb.ft. (as per the LC Shop Manual) to 35-40 lb.ft.



Col - Thank you for your sacrifice, the Torana fraternity specifically, and the free world in general, owe you a debt of gratitude in furthering the body of knowledge surrounding GTR stabiliser U-bolts. :)



Dave - around Nov-Dec 1967, I signed the "Official Secrets Act', an undertaking that I do not take lightly :)



Cheers



Bazza




Thanks Bazza, however I feel I should inform you the torque specs quoted in the above article were again revised during LJ production plus measurements were also published for the positioning of the stabilizer bar and clamps.



Holden's have informed me they will sue me if I publish this information without their written consent. :)


Edited by S pack, 21 October 2016 - 09:11 PM.


#39 RallyRed

RallyRed

    Oh My, Don't you post alot

  • Members
  • PipPipPipPipPipPipPip
  • 7,805 posts
  • Name:Col
  • Location:NSW
  • Car:LC GTR etc
  • Joined: 02-October 11

Posted 21 October 2016 - 09:24 PM

Never before in the field of human endevour, have so few clamps, caused so much confusion to to so many, for so long..

We'll clamp them on the beaches, we'll clamp them... and so on.

#40 S pack

S pack

    Scrivet Counter

  • Members
  • PipPipPipPipPipPipPip
  • 15,522 posts
  • Name:Dave
  • Location:Luggage Point
  • Car:73 LJ
  • Joined: 25-January 10

Posted 21 October 2016 - 09:50 PM

dumb question but did all gtr's have sway bars

Not dumb and yes the 82911 model had a front stabilizer bar as std equipment.



#41 S pack

S pack

    Scrivet Counter

  • Members
  • PipPipPipPipPipPipPip
  • 15,522 posts
  • Name:Dave
  • Location:Luggage Point
  • Car:73 LJ
  • Joined: 25-January 10

Posted 21 October 2016 - 09:53 PM

Col. you need to rotate your clamps through 180 degrees and move one clamp closer to the end of the sway bar.

And remove that piece of rubber.




#42 grumpy xu1

grumpy xu1

    Lotsa Posts!

  • Members
  • PipPipPipPipPipPip
  • 2,809 posts
  • Name:Gary
  • Location:Queensland
  • Car:lj xu1
  • Joined: 01-February 10

Posted 21 October 2016 - 10:02 PM

Post them please Dave & tell them to get blood from the stone mate ! Gary.

#43 Bazza

Bazza

    ǝɹnʇxıɟ ɯnɹoɟ

  • Members
  • PipPipPipPipPipPipPip
  • 4,289 posts
  • Location:Outer Melb West Vic
  • Car:ɐuɐɹoʇ
  • Joined: 11-November 05

Posted 21 October 2016 - 10:37 PM

Hi



Here Kev and Col - here is Fig 1 missing from my earlier post. It better explains the correct order of assembly.



Cheers



Bazza





Attached Files



#44 Ice

Ice

    Cool

  • Members
  • PipPipPipPipPipPipPip
  • 15,103 posts
  • Name:Gene
  • Location:Galaxy's away from Ipswich
  • Car:77 HZ Sandman Van
  • Joined: 03-January 07

Posted 21 October 2016 - 10:40 PM

Its really is a no brainer which way they would go though seems logical

#45 Ice

Ice

    Cool

  • Members
  • PipPipPipPipPipPipPip
  • 15,103 posts
  • Name:Gene
  • Location:Galaxy's away from Ipswich
  • Car:77 HZ Sandman Van
  • Joined: 03-January 07

Posted 21 October 2016 - 10:45 PM

Good info Baz

#46 S pack

S pack

    Scrivet Counter

  • Members
  • PipPipPipPipPipPipPip
  • 15,522 posts
  • Name:Dave
  • Location:Luggage Point
  • Car:73 LJ
  • Joined: 25-January 10

Posted 21 October 2016 - 11:01 PM

Its really is a no brainer which way they would go though seems logical

Yep, blind freddy would work it out pretty quickly.



No offence intended to those who are not visually impaired :)


Edited by S pack, 21 October 2016 - 11:04 PM.


#47 RallyRed

RallyRed

    Oh My, Don't you post alot

  • Members
  • PipPipPipPipPipPipPip
  • 7,805 posts
  • Name:Col
  • Location:NSW
  • Car:LC GTR etc
  • Joined: 02-October 11

Posted 22 October 2016 - 05:47 AM

Ta for the info....might leave well enough alone, been like it for decades, will  ponder the forces at play...



#48 MustardGTR

MustardGTR

    Forum Member

  • Members
  • PipPipPip
  • 239 posts
  • Location:Western Australia
  • Car:72 GTR, 73 GTR
  • Joined: 16-March 07

Posted 22 October 2016 - 11:50 AM

Another variation on the theme and once again incorrect.



Seems the correct assembly of these little suckers has confused many over the years.






#49 frash da bucket

frash da bucket

    Forum Fixture

  • Members
  • PipPipPipPipPip
  • 1,890 posts
  • Location:NSW
  • Joined: 23-April 07

Posted 22 October 2016 - 10:40 PM

Hi Bazza,



Mine are fitted the same as that diagram on the xu-1,original clamps and bar.



Regards John.



#50 S pack

S pack

    Scrivet Counter

  • Members
  • PipPipPipPipPipPipPip
  • 15,522 posts
  • Name:Dave
  • Location:Luggage Point
  • Car:73 LJ
  • Joined: 25-January 10

Posted 22 October 2016 - 11:59 PM

Found it. :)



STABILIZER SHAFT ATTACHMENT REVISED- TORANA GTR

The attachment of the front stabilizer shaft to the suspension control arms of Torana 'GTR' cars has been revised to obviate relative movement between stabilizer, control rod and clamps. The revision comprises a new U bolt of 3/8 in. diameter, with corresponding changes to the U bolt seat plate, and release of new nuts and washers.





There is no reference to the above revision being a recall or a warranty issue and no mention of clamp breakages either.



Edited by S pack, 23 October 2016 - 12:01 AM.
