Original Radiator?


  • Please log in to reply
22 replies to this topic

#1 Ando

Ando

    Forum Fixture

  • Members
  • PipPipPipPipPip
  • 519 posts
  • Location:Coolangatta
  • Car:6/'76 L32 SS white & black. 9/'76 L31 SS gold. 5/'77 L31 SS Chamois. 3/'79 UC SL Deluxe hatch.
  • Joined: 10-February 08
Garage View Garage

Posted 08 March 2018 - 11:30 AM

Radiator Questions;

I have 2 (I believe original) radiators I've pulled from my SS cars.

My 4.2 Litre manual SS had a 2 core installed & all the indicators lead to it being original. My car is a 6/76 build & date (F6) on the radiator matches as well so I'm 99% confident it's original.

However, my 5.0 litre manual SS had a 3 core in it. The radiator date (J6) also matches the car build 9/76. It sits flush with the radiator support panel & has the provision for the clutch fan shroud. It's a non factory AC car but it did have AC fitted at some stage..

Is this 3 core what is described in the GMH parts book as heavy duty?

I thought all V8 Toranas were fitted with the smaller 2 core for Manual, Non factory AC cars & only Automatic cars got the Heavy Duty radiator or cars with factory AC.

Any clues why a 3 core would be factory fitted to a L31 M21?? No factory AC.

Cheers Ando



Attached File  IMG_3942.jpg   62.18K   29 downloads  3 core & 2 core

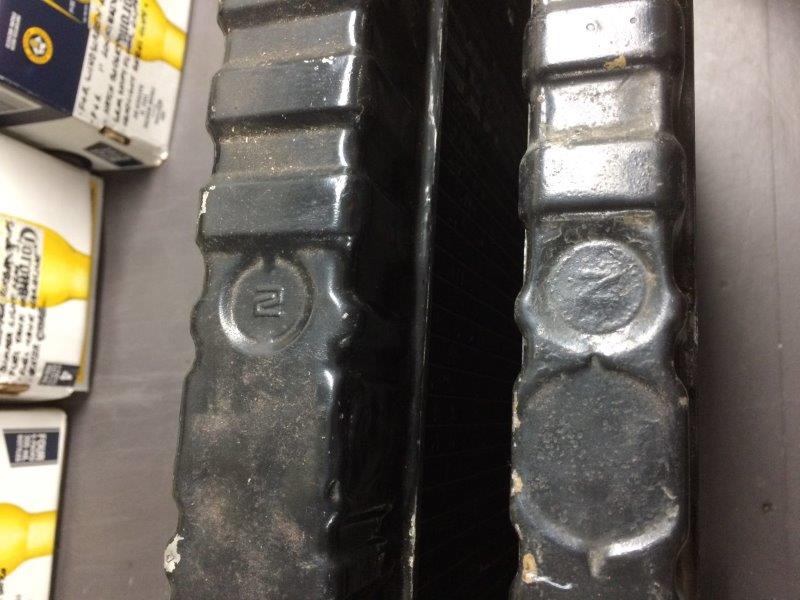

Attached File  IMG_3905.jpg   57.25K   20 downloads  3 core date



Attached File  IMG_3907.jpg   58.34K   24 downloads  2 core date



Attached File  IMG_3946.jpg   67.19K   19 downloads  Supplier branding



Attached File  IMG_3945.jpg   40.39K   20 downloads  Flush mounts to support panel



Attached File  IMG_3944.jpg   39.22K   19 downloads  Same as GMH parts Illustration except for extra drill holes



Attached File  IMG_3943.jpg   60.45K   23 downloads  Definitely Torana Radiators



Attached File  15056233_10209750409490325_8395536557239601740_n.jpg   45.11K   17 downloads  My SS 5.0 litre with 3 core & shroud.














Edited by Ando, 08 March 2018 - 03:37 PM.


#2 StephenSLR

StephenSLR

    Oh My, Don't you post alot

  • Members
  • PipPipPipPipPipPipPip
  • 6,707 posts
  • Name:Stephen
  • Location:Sydney
  • Car:1976 LX SL/R
  • Joined: 12-November 05

Posted 08 March 2018 - 02:44 PM

http://www.gmh-toran...0-v8-radiators/



http://www.gmh-toran...al-v8-radiator/



s



#3 Bazza

Bazza

    ǝɹnʇxıɟ ɯnɹoɟ

  • Members
  • PipPipPipPipPipPipPip
  • 4,289 posts
  • Location:Outer Melb West Vic
  • Car:ɐuɐɹoʇ
  • Joined: 11-November 05

Posted 08 March 2018 - 06:07 PM

Hi



Heavy duty radiators were always an option.



Cheers



Bazza



#4 StephenSLR

StephenSLR

    Oh My, Don't you post alot

  • Members
  • PipPipPipPipPipPipPip
  • 6,707 posts
  • Name:Stephen
  • Location:Sydney
  • Car:1976 LX SL/R
  • Joined: 12-November 05

Posted 08 March 2018 - 06:14 PM

Heavy duty radiators were always an option.



They were still 2 core though weren't they?



s



#5 Dr Terry

Dr Terry

    Technical + Numbers Guru + Moderator

  • Moderators
  • PipPipPipPipPipPip
  • 3,267 posts
  • Location:Eastwood (Sydney) NSW
  • Joined: 13-November 05

Posted 08 March 2018 - 07:25 PM

I think radiator type differed pre & post ADR27A.



From memory all pre ADR27A V8 non-A/C cars got the 2 core, but ADR27A V8 non-A/C autos got the 3 core.



Basically ADR27A cars were designed to have the engine run at around 10 degrees hotter than the earlier cars, so the cooling system was uprated accordingly.



Dr Terry



#6 Ando

Ando

    Forum Fixture

  • Members
  • PipPipPipPipPip
  • 519 posts
  • Location:Coolangatta
  • Car:6/'76 L32 SS white & black. 9/'76 L31 SS gold. 5/'77 L31 SS Chamois. 3/'79 UC SL Deluxe hatch.
  • Joined: 10-February 08
Garage View Garage

Posted 08 March 2018 - 07:34 PM

Replying to Posts 2,3 & 4...



Yes, I would agree but the date code matches the car & the radiator strap suits Torana support panel.



Is the matching date a coincidence or Holden Dealer order on behalf of the customer?



It's different to a HQ - Hz radiator



Previous 3rd owner has confirmed there was AC but removed. Unable to trace back any further than the late nineties atm.



Holden Historical report states 'Standard Heating & Ventilation System'



So I'm wondering if it was possible to order the 3 core instead of the standard 2 core back in the day?


Edited by Ando, 08 March 2018 - 07:44 PM.


#7 Ando

Ando

    Forum Fixture

  • Members
  • PipPipPipPipPip
  • 519 posts
  • Location:Coolangatta
  • Car:6/'76 L32 SS white & black. 9/'76 L31 SS gold. 5/'77 L31 SS Chamois. 3/'79 UC SL Deluxe hatch.
  • Joined: 10-February 08
Garage View Garage

Posted 08 March 2018 - 07:39 PM

I think radiator type differed pre & post ADR27A.



From memory all pre ADR27A V8 non-A/C cars got the 2 core, but ADR27A V8 non-A/C autos got the 3 core.



Basically ADR27A cars were designed to have the engine run at around 10 degrees hotter than the earlier cars, so the cooling system was uprated accordingly.



Dr Terry





Thanks Dr Terry,



That makes sense to me!



I'm trying to get to the bottom of this before I go & spend money on restoring & re-coring the right or wrong radiator.



cheers


Edited by Ando, 08 March 2018 - 07:43 PM.


#8 tuxedoss

tuxedoss

    Forum Fixture

  • Members
  • PipPipPipPipPip
  • 1,023 posts
  • Name:Brett
  • Location:Sydney
  • Car:ss
  • Joined: 29-July 11

Posted 19 March 2018 - 07:51 PM

What is the shroud made of? If its an original Torana one it will be fibreglass.  The only cars to get the shroud were factory air V8s. So maybe your car had dealer fitted aftermarket air but they ordered a V8 radiator and shroud from spares and installed after it left the factory. Or it had factory air which someone ripped out but unlikely as that would be a big job

.



#9 ZUSE

ZUSE

    Forum Member

  • Members
  • PipPipPip
  • 91 posts
  • Name:ZUSE
  • Location:SOUTH AUSTRALIA
  • Car:GTR TORANA
  • Joined: 12-November 10
Garage View Garage

Posted 20 March 2018 - 05:29 PM

Radiator Questions;

I have 2 (I believe original) radiators I've pulled from my SS cars.

My 4.2 Litre manual SS had a 2 core installed & all the indicators lead to it being original. My car is a 6/76 build & date (F6) on the radiator matches as well so I'm 99% confident it's original.

However, my 5.0 litre manual SS had a 3 core in it. The radiator date (J6) also matches the car build 9/76. It sits flush with the radiator support panel & has the provision for the clutch fan shroud. It's a non factory AC car but it did have AC fitted at some stage..

Is this 3 core what is described in the GMH parts book as heavy duty?

I thought all V8 Toranas were fitted with the smaller 2 core for Manual, Non factory AC cars & only Automatic cars got the Heavy Duty radiator or cars with factory AC.

Any clues why a 3 core would be factory fitted to a L31 M21?? No factory AC.

Cheers Ando



attachicon.gifIMG_3942.jpg  3 core & 2 core



attachicon.gifIMG_3905.jpg  3 core date



attachicon.gifIMG_3907.jpg  2 core date



attachicon.gifIMG_3946.jpg  Supplier branding



attachicon.gifIMG_3945.jpg  Flush mounts to support panel



attachicon.gifIMG_3944.jpg  Same as GMH parts Illustration except for extra drill holes



attachicon.gifIMG_3943.jpg  Definitely Torana Radiators



attachicon.gif15056233_10209750409490325_8395536557239601740_n.jpg  My SS 5.0 litre with 3 core & shroud.













the three core radiator i believe not to be original ,the strap that is fitted is also suited to the ht g k holden,the only differance were the holes for the shroud ?yours appear to be re-drilled ?,  the emblem n for natrad appears to be later model 96 not 76

the two core would be suited , the heavy duty core was 38mm with 14 f.p.i using the smaller tanks

my thoughts

back in the day



#10 S pack

S pack

    Scrivet Counter

  • Members
  • PipPipPipPipPipPipPip
  • 15,522 posts
  • Name:Dave
  • Location:Luggage Point
  • Car:73 LJ
  • Joined: 25-January 10

Posted 20 March 2018 - 07:41 PM

The brand logos on the top tanks tells us the 3 core unit is an aftermarket item for an LX Torana.

The Natrad name and logo did not exist until the mid 1980's.








#11 tuxedoss

tuxedoss

    Forum Fixture

  • Members
  • PipPipPipPipPip
  • 1,023 posts
  • Name:Brett
  • Location:Sydney
  • Car:ss
  • Joined: 29-July 11

Posted 20 March 2018 - 08:36 PM

The straps you have on the larger radiator appear to be genuine V8 aircon ones but the 2 large holes have been redrilled so your shroud is probably not original Torana. While the core I have is not standard I'm quite positive the strap on it is original as my original Torana shroud mates up with the small top hole and bottom cutout



#12 Ando

Ando

    Forum Fixture

  • Members
  • PipPipPipPipPip
  • 519 posts
  • Location:Coolangatta
  • Car:6/'76 L32 SS white & black. 9/'76 L31 SS gold. 5/'77 L31 SS Chamois. 3/'79 UC SL Deluxe hatch.
  • Joined: 10-February 08
Garage View Garage

Posted 21 March 2018 - 05:46 AM

Thanks Guys,



I came to the same conclusion & decided to re-core the thin tank 'Torana' radiator.



What threw me was the date code on the larger 3 core radiator.

It matched the car's build date & the car did have a non-factory AC.



The small Torana radiator is correct for my manual SS cars.

The date code is a few months before my 9/76 SS (from my 6/76 SS) but the fan guard will fit.

It wont be going back in my 6/76 car as it's a modified SS - A9X replica.



There's probably not many original 'Torana' radiators out there anyway with the date stamp. So I'm lucky I have one.



Cheers Ando


Edited by Ando, 21 March 2018 - 05:57 AM.


#13 Shiney005

Shiney005

    Oh My, Don't you post alot

  • Members
  • PipPipPipPipPipPipPip
  • 8,993 posts
  • Name:Laurie
  • Location:Dubya Hay
  • Car:Toyota Mirai
  • Joined: 19-January 12
Garage View Garage

Posted 21 March 2018 - 02:50 PM

Have you got a close up pic of the core Ando?



L34 and A9X had this style, but I'm not sure of the other Toranas.



Attached File  L34 A9X core (2)small.jpg   377.18K   7 downloads



#14 Ando

Ando

    Forum Fixture

  • Members
  • PipPipPipPipPip
  • 519 posts
  • Location:Coolangatta
  • Car:6/'76 L32 SS white & black. 9/'76 L31 SS gold. 5/'77 L31 SS Chamois. 3/'79 UC SL Deluxe hatch.
  • Joined: 10-February 08
Garage View Garage

Posted 21 March 2018 - 07:11 PM

Have you got a close up pic of the core Ando?



L34 and A9X had this style, but I'm not sure of the other Toranas.



Sorry Laurie,



I took the Torana radiator to the repair shop for re-coring etc.



I didn't think to take a photo of the tubes & fins..bugger!



You could save my image above to your desktop & zoom in..that might work.



The other was re-cored in 96 going by the tag on the core.



Ando



#15 S pack

S pack

    Scrivet Counter

  • Members
  • PipPipPipPipPipPipPip
  • 15,522 posts
  • Name:Dave
  • Location:Luggage Point
  • Car:73 LJ
  • Joined: 25-January 10

Posted 21 March 2018 - 11:42 PM

Sorry Laurie,



I took the Torana radiator to the repair shop for re-coring etc.



I didn't think to take a photo of the tubes & fins..bugger!



You could save my image above to your desktop & zoom in..that might work.



The other was re-cored in 96 going by the tag on the core.



Ando

If the tag on the cooling fins of the 3 core rad is dated 1996 and the top tank is dated J6 then I would expect that NATRAD radiator is not a re-core but was a completely brand new unit assembled in 1996.


Edited by S pack, 21 March 2018 - 11:42 PM.


#16 TerrA LX

TerrA LX

    Fulcrum Fixture

  • Members
  • PipPipPipPipPipPipPip
  • 14,241 posts
  • Location:Sid 'n' knee
  • Joined: 31-May 06

Posted 28 March 2018 - 09:29 AM

I could be wrong, but working as a radiator repairer some time ago I was under the impression 3 row radiator was a after market pack supplied thru radiator repairers, all factory HD radiators (ie A/C opted cars) were 2 row but had extra tubes in the core with closer spaced fins...



#17 Shiney005

Shiney005

    Oh My, Don't you post alot

  • Members
  • PipPipPipPipPipPipPip
  • 8,993 posts
  • Name:Laurie
  • Location:Dubya Hay
  • Car:Toyota Mirai
  • Joined: 19-January 12
Garage View Garage

Posted 28 March 2018 - 03:42 PM

In the LH parts book there are 4 HD radiators for V8. HD V8 with and without air con, and HD L34 with and without air con. The L34 ones were definately 2 row.



#18 Ando

Ando

    Forum Fixture

  • Members
  • PipPipPipPipPip
  • 519 posts
  • Location:Coolangatta
  • Car:6/'76 L32 SS white & black. 9/'76 L31 SS gold. 5/'77 L31 SS Chamois. 3/'79 UC SL Deluxe hatch.
  • Joined: 10-February 08
Garage View Garage

Posted 29 March 2018 - 04:54 AM

I did count the number of tubes in both radiators.



The Torana radiator had 180 tubes (3 rows) & the larger 3 core rad had 150 tubes.



I'm thinking the Torana rad was re-cored at some stage in it's life.



#19 Shiney005

Shiney005

    Oh My, Don't you post alot

  • Members
  • PipPipPipPipPipPipPip
  • 8,993 posts
  • Name:Laurie
  • Location:Dubya Hay
  • Car:Toyota Mirai
  • Joined: 19-January 12
Garage View Garage

Posted 29 March 2018 - 03:05 PM

So both the factory radiator and the aftermarket one with the bigger tanks have 3 rows of tubes? When looking at a "narrow" radiator I always assumed they were two row, and the "wide" ones 3 row. I will have to have a better look now.



#20 hanra

hanra

    Oh My, Don't you post alot

  • Members
  • PipPipPipPipPipPipPip
  • 10,814 posts
  • Name:Brad
  • Location:Farrrrrr North Qld
  • Car:1975 LH SL/R 5000, 1967 Morris Cooper S, E36 BMW, Toyota Corolla, Isuzu DMax
  • Joined: 24-March 11

Posted 29 March 2018 - 03:08 PM

A 3 row radiator will not work with the standard metal curved finger guard, unless its cut and shut and lengthened.

#21 Ando

Ando

    Forum Fixture

  • Members
  • PipPipPipPipPip
  • 519 posts
  • Location:Coolangatta
  • Car:6/'76 L32 SS white & black. 9/'76 L31 SS gold. 5/'77 L31 SS Chamois. 3/'79 UC SL Deluxe hatch.
  • Joined: 10-February 08
Garage View Garage

Posted 29 March 2018 - 04:52 PM

I added about 50mm to my fan guard on the white hatch.





Attached File  IMG_2610.JPG   221.4K   7 downloads



It wont be necessary for the Gold SS.



Cheers Ando









#22 Shiney005

Shiney005

    Oh My, Don't you post alot

  • Members
  • PipPipPipPipPipPipPip
  • 8,993 posts
  • Name:Laurie
  • Location:Dubya Hay
  • Car:Toyota Mirai
  • Joined: 19-January 12
Garage View Garage

Posted 30 March 2018 - 10:02 PM

Standard factory heavy duty radiator for L34 and A9X is two rows of 73 tubes. (146 in total) Thanks to Dave Mac.


Edited by Shiney005, 30 March 2018 - 10:05 PM.


#23 Shiney005

Shiney005

    Oh My, Don't you post alot

  • Members
  • PipPipPipPipPipPipPip
  • 8,993 posts
  • Name:Laurie
  • Location:Dubya Hay
  • Car:Toyota Mirai
  • Joined: 19-January 12
Garage View Garage

Posted 10 April 2018 - 08:35 AM

HD 2 row A9X.



Attached File  30516653_1766837396713779_8901269706703720349_n.jpg   86.16K   6 downloads






0 user(s) are reading this topic

0 members, 0 guests, 0 anonymous users
