Hi guys as some of you would be aware i am converting from manual to auto and trying to locate  an LC floor shift loom

and i am not having ant luck sourcing one, so now i will source the column auto loom as im thinking it would be the same

ive seen a molested loom from a guy who said his auto column has the purple wires for ignition at same place the green wires are for reverse down bottom of column,so basically im just asking to be sure.this pic just shows where the reverse wires are on column....Do the purple ignition wires plug in down there too?....T.I.A



 MY 69 LC TORANA 171.jpg   106.82K   2 downloads



Maz









[S pack]

Purple wires should be there somewhere with the green back up wires. The switch on the auto models is combined back up and neutral start.

[madtoranajzedded]

i thought that too.i pulled out my lj on column to see if they were on it .but not there,...with manual there is only one wire going from ignition

to solenoid with auto there is two one from ignition to inhibitor switch on selector.the other goes back through the loom to solenoid to complete the circuit.



i think thats how it goes.not sure though

Edited by madtoranajzedded, 11 July 2015 - 08:00 PM.

[Dr Terry]

That pic looks like a manual trans car.



Is that the clutch pedal near the column & the brake pedal just to the right & up a bit ?



S pack is correct, the reverse & inhibitor switch is one piece & all 4 wires (2 x green & 2 x violet) should plug into it.



Also the harness for column auto & floor shift auto is the same, they simply add a plug-in extension piece.



Dr Terry

[madtoranajzedded]

yeah thats the Manual 3spd on column i used as a reference  Dr Terry



thanks for confirming guys that both auto lc looms are the same.thats what i was after





Cheers Maz

[S pack]

i thought that too.i pulled out my lj on column to see if they were on it .but not there,...with manual there is only one wire going from ignition

to solenoid with auto there is two one from ignition to inhibitor switch on selector.the other goes back through the loom to solenoid to complete the circuit.



i think thats how it goes.not sure though

The violet wires and connector may be hiding under the vinyl floor mat and underlay but they should be there not too far away from your reverse switch wires and plug.



AFAIK column shift manual models have the connector in the violet wire and a looped wire connector that plugs in to complete the circuit.

Edited by S pack, 17 July 2015 - 02:55 PM.

[TerrA LX]

Don't forget the orange wire to illuminate the shift selector.

[madtoranajzedded]

 What do you mean by a looped wire connector  Dave.just disconnect that and an put a plug on then join it to the small loom to selector.is that what you mean.

Edited by madtoranajzedded, 19 July 2015 - 12:41 AM.

[Dr Terry]

Don't forget the orange wire to illuminate the shift selector.

Isn't the illumination circuit a Grey wire ?



Dr Terry

[S pack]

Isn't the illumination circuit a Grey wire ?



Dr Terry

Yes, grey wire on LC/LJ. I believe the electric kick down switch on the LJ uses an orange wire.

[TerrA LX]

Meh, purple, green, grey, they all look the same with your eyes closed

[madtoranajzedded]

i end up getting an auto loom reason being i dont want to molest the original one..will convert it for an lc gtr dash down the track



i havnt actually got the loom yet as ive queried him if its out of a 4cyl .is there any difference i should be aware of beside loom for lights



being shorter.

[madtoranajzedded]

dude on Ebay who makes looms for hk-hg autos says his will plug into mine.ive told him the plugs are different but he says it will plug into

my harness.ive told him the ends are female and wont to join loom.and ones to switch are male.ive showed him the pics and he adamant it wiil plug together.....am i losing my mind.



 MY 69 LC TORANA 196.jpg   120.18K   0 downloads

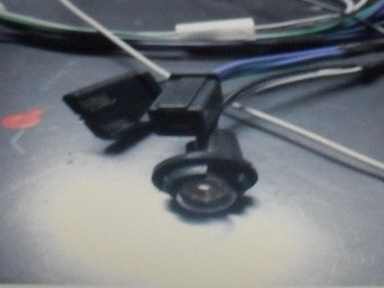

 MY 69 LC TORANA 198.jpg   60.31K   0 downloads



to shifter

 MY 69 LC TORANA 197.jpg   105.66K   1 downloads

 MY 69 LC TORANA 199.jpg   99.7K   2 downloads





[TerrA LX]

From what I can see this end of the loom will will plug into the shifter/console.

Edited by TerrA LX, 28 July 2015 - 07:25 AM.

[Dr Terry]

Yes, that looks correct. The 2 plugs in pic 1 will plug into the sockets in pic 4. Also as TerrA LX has said, the plugs in pic 2 (pictured with the globe) will plug directly onto the shifter switch.



The photos do seem distorted though, the plug proportions don't look 'real'.



Dr Terry

[madtoranajzedded]

no he says pic 4 will connect to ths dash harness and pic 3 will connect to the park neutral park switch.his exact words

i told him the plugs in pic 4 needs to be changed.they are complete different...



its an easy fix i know

[Dr Terry]

If you re-read what I wrote, it is the same as what the seller said.



Also some of those photos are distorted, so as you don't get the correct proportions of the plugs.



I think if you see these in real life, you will see that they will fit.



Dr Terry

[madtoranajzedded]

yeah i stuffed up bud.it was the other way around he said.he's just made an error

you are right Dr Terry the more i look at it i can see what you mean by the distortion in the picture making the plug look weird



where does that grey wire plug in at .to fuse box?

[Dr Terry]

Yes, Grey wire to the fusebox, for quadrant illumination.



Dr Terry

[madtoranajzedded]

Big thanks guys for your help.appreciate very much









Maz

[madtoranajzedded]

The loom i bought plugs up well,however  the grey wire light socket is no good  as i need the one or whatever it is  its very small

and  have no idea what im looking for lol.would appreciate very much if someone has a pic of globe holder or could tell me what  they have used to replace blown one





 MY 69 LC TORANA 222.jpg   384.3K   1 downloads



cheers Maz









[madtoranajzedded]

Can anyone tell me that the light socket does go in that blue holder.the dude who made the loom for auto shifter says hes 99% right

that the globe and holder is the right one.but i cant find anywhere it goes .its too big.i first thought it went at that front hole to console but thats just too far away from the selector to work.i did ask a fella for a pic of socket in his 4cyl (below) but he said it doesn fit in the blue thingy and his could of been made up.tried to make a cover for the globe then said stuff it haha.

 MY 69 LC TORANA 224.jpg   48.54K   0 downloads

Edited by madtoranajzedded, 17 August 2015 - 02:31 PM.

[S pack]

He's full of shite. The blue plastic fitting is the bulb mask. The bulb is a mini wedge type and it's plastic holder pushes into the mask.

The bulb and bulb holder is or should be the same as the ash tray lamp in HJ - WB Holden, probably HQ also.



I'll put up a pic later.

Edited by S pack, 17 August 2015 - 03:27 PM.

[wot179]

If someone has a pic I will look through some ratted looms I have hung onto for these kinds of ocassions.

[madtoranajzedded]

that would be brilliant dave  .im not going to tell that fella he's wrong haha ...stuff him..



this might help Craig.... the dia for the blue fitting is 8mm.was just about to ask some hq dudes for a pic.



Dave =  legend..
