LX 308 Distributor what is the correct part number?


  • Please log in to reply
21 replies to this topic

#1 Antelope Hatch

Antelope Hatch

    Forum Participant

  • Members
  • PipPip
  • 19 posts
  • Name:Ben
  • Location:Marulan
  • Car:L32 LX Torana Hatch
  • Joined: 24-October 15

Posted 02 May 2021 - 10:57 AM

Hi, I’m looking at rebuilding a distributor for my LX Hatch and am wondering what is the correct part number for a 1977 LX 308 with pollution heads?

Is it 2807236?
Did the A9X have a different number?
What does the distributor with part number 9938994 suit?

I have searched other posts however they mainly cover LH SLR.

Cheers

Attached Files



#2 yel327

yel327

    Oh My, Don't you post alot

  • Members
  • PipPipPipPipPipPipPip
  • 10,841 posts
  • Joined: 10-February 08

Posted 02 May 2021 - 12:06 PM

It is the Bosch number you are looking for. LX 5.0L with ADR27A lists the same as HX as 9 230 063 825. HZ does change from HX to 9 230 063 835. Most A9X got HZ engines, not sure if they changed to the HZ dizzy or not. It is not listed as a change in the LX Features Manual amendment for A9X though.



That 9 230 063 801 is for HJ Holden and Statesman and also for LH after HJ release and early LX.



9938994 is the ADR27A 5.0L distributor for HX and LX, it will be 9 230 063 825.



I'll see if I have an ADR27A one, would be happy to swap with you as my HJ Premier is missing its proper dizzy, it had a Scorcher on it when I bought it and now has the wrong one.



#3 Antelope Hatch

Antelope Hatch

    Forum Participant

  • Members
  • PipPip
  • 19 posts
  • Name:Ben
  • Location:Marulan
  • Car:L32 LX Torana Hatch
  • Joined: 24-October 15

Posted 02 May 2021 - 02:14 PM

Hi Yel327,

Thanks for the clarification, PM me some contact details and we can tee something up.

Cheers

#4 yel327

yel327

    Oh My, Don't you post alot

  • Members
  • PipPipPipPipPipPipPip
  • 10,841 posts
  • Joined: 10-February 08

Posted 02 May 2021 - 02:19 PM

I’ll have to go searching first. Might take a few days.

#5 yel327

yel327

    Oh My, Don't you post alot

  • Members
  • PipPipPipPipPipPipPip
  • 10,841 posts
  • Joined: 10-February 08

Posted 02 May 2021 - 07:11 PM

Only found a HX and a HZ 4.2 dizzy in the shed so far. Will keep looking. All the rest have been early ones of HT-HG so far.

#6 Bigfella237

Bigfella237

    Socially Distant

  • Members
  • PipPipPipPipPipPip
  • 3,705 posts
  • Name:Andrew
  • Location:Far South Coast of NSW
  • Car:(s) not as many as I'd like but more than I've got space for!
  • Joined: 31-October 14

Posted 03 May 2021 - 11:32 AM

Just out of interest, what are the numbers on those earlier distributors?



#7 yel327

yel327

    Oh My, Don't you post alot

  • Members
  • PipPipPipPipPipPipPip
  • 10,841 posts
  • Joined: 10-February 08

Posted 03 May 2021 - 12:02 PM

Will have to go dig them out again!

#8 Bigfella237

Bigfella237

    Socially Distant

  • Members
  • PipPipPipPipPipPip
  • 3,705 posts
  • Name:Andrew
  • Location:Far South Coast of NSW
  • Car:(s) not as many as I'd like but more than I've got space for!
  • Joined: 31-October 14

Posted 03 May 2021 - 12:08 PM

Nah, not worth the trouble, I thought you might still have them handy!



#9 yel327

yel327

    Oh My, Don't you post alot

  • Members
  • PipPipPipPipPipPipPip
  • 10,841 posts
  • Joined: 10-February 08

Posted 03 May 2021 - 04:55 PM

One of them that I can get back to easily is 9 230 063 800 is 7434981. Which is HT-HJ, LH and early LX 253/4.2.

#10 Bigfella237

Bigfella237

    Socially Distant

  • Members
  • PipPipPipPipPipPip
  • 3,705 posts
  • Name:Andrew
  • Location:Far South Coast of NSW
  • Car:(s) not as many as I'd like but more than I've got space for!
  • Joined: 31-October 14

Posted 03 May 2021 - 05:58 PM

I've been goggling what I can on the Bosch part numbers, (with a number something like "9 230 063 800") various sources say:



The first digit is apparently the factory / manufacture location ("0" seems to be Germany, "1" must be somewhere else in Europe, and I'm guessing "9" must be Australia).



The second number "230" (and apparently "231") seems to designate it's a distributor.



The third number specifies the points plate fitted (which determines the points / condensor set used). Holden 6 cylinder red motors are mostly all "062" and red V8's are "063". However I did see a picture of a very early prototype Holden V8 distributor with an "060" points plate in it (unless it was a mis-stamp)? I know the twin-point L34 distributor was custom built by Repco but I'd be interested to know what points plate was used, unless it was custom made too?



And the fourth number is the distributor model (I think). This seems to incorporate things like the type of advance mechanism (vacuum and/or mechanical) as well as the weights fitted.



At first I thought that the first digit in the last group seemed to indicate the number of cam lobes (6 cyl dizzies start with a "6" and V8 dizzies start with an "8") but then I found an electronic dizzy from a 6 cylinder Commodore that started with a "7" so guessing it's just a model number after all?



#11 hanra

hanra

    Oh My, Don't you post alot

  • Members
  • PipPipPipPipPipPipPip
  • 9,673 posts
  • Name:Brad
  • Location:Farrrrrr North Qld
  • Car:1975 LH SL/R 5000, 1967 Morris Cooper S, E36 BMW, Toyota Corolla, Isuzu DMax
  • Joined: 24-March 11

Posted 03 May 2021 - 06:14 PM

This is what I’m using.

Attached Files


Edited by hanra, 03 May 2021 - 06:21 PM.


#12 Shiney005

Shiney005

    Oh My, Don't you post alot

  • Members
  • PipPipPipPipPipPipPip
  • 6,669 posts
  • Name:Laurie
  • Location:Dubya Hay
  • Car:Toyota Mirai
  • Joined: 19-January 12
Garage View Garage

Posted 04 May 2021 - 08:59 AM

The body on the L34 dizzy has the same numbers as Brads, with the exception of the sideways 324. Mine is 421.

The points plates are custom made with no numbers.

Attached File  Mine 1.JPG   169.08K   3 downloads



Attached File  Mine 2.JPG   175.55K   2 downloads



Attached File  Mine 3.JPG   260.13K   4 downloads



Attached File  Mine 4.JPG   296.92K   2 downloads



#13 hanra

hanra

    Oh My, Don't you post alot

  • Members
  • PipPipPipPipPipPipPip
  • 9,673 posts
  • Name:Brad
  • Location:Farrrrrr North Qld
  • Car:1975 LH SL/R 5000, 1967 Morris Cooper S, E36 BMW, Toyota Corolla, Isuzu DMax
  • Joined: 24-March 11

Posted 04 May 2021 - 09:09 AM

The numbers in the parts book all match up.



#14 yel327

yel327

    Oh My, Don't you post alot

  • Members
  • PipPipPipPipPipPipPip
  • 10,841 posts
  • Joined: 10-February 08

Posted 04 May 2021 - 09:26 AM

Yours is as it should be Brad. Same as HJ. The one in the second paragraph of the second post.

They’ve all got different 3 digit codes Laurie, makes me think it’s a time/date code of sorts.

#15 S pack

S pack

    Scrivet Counter

  • Members
  • PipPipPipPipPipPipPip
  • 13,713 posts
  • Name:Dave
  • Location:Luggage Point
  • Car:73 LJ
  • Joined: 25-January 10

Posted 04 May 2021 - 10:25 AM

The 3 digit codes are date codes.

#16 Bigfella237

Bigfella237

    Socially Distant

  • Members
  • PipPipPipPipPipPip
  • 3,705 posts
  • Name:Andrew
  • Location:Far South Coast of NSW
  • Car:(s) not as many as I'd like but more than I've got space for!
  • Joined: 31-October 14

Posted 04 May 2021 - 10:30 AM

~ makes me think it’s a time/date code of sorts.



"421" could possibly be 1st February 1974, which would be about right for an L34 distributor giving Repco time to do their mods.



21 couldn't be a week number as that's too late for L34 production, I guess it may just be a batch number?



Brad's dizzy has "324" stamped on it. Is yours likely to be made in Feb '73. Brad (if it's original)?



#17 hanra

hanra

    Oh My, Don't you post alot

  • Members
  • PipPipPipPipPipPipPip
  • 9,673 posts
  • Name:Brad
  • Location:Farrrrrr North Qld
  • Car:1975 LH SL/R 5000, 1967 Morris Cooper S, E36 BMW, Toyota Corolla, Isuzu DMax
  • Joined: 24-March 11

Posted 04 May 2021 - 10:34 AM

Mine is not original. My car had a Mallory twin point in it when I got it. I think I actually bought that dizzy off dattoman.


Edited by hanra, 04 May 2021 - 10:35 AM.


#18 S pack

S pack

    Scrivet Counter

  • Members
  • PipPipPipPipPipPipPip
  • 13,713 posts
  • Name:Dave
  • Location:Luggage Point
  • Car:73 LJ
  • Joined: 25-January 10

Posted 04 May 2021 - 04:23 PM

"421" could possibly be 1st February 1974, which would be about right for an L34 distributor giving Repco time to do their mods.



21 couldn't be a week number as that's too late for L34 production, I guess it may just be a batch number?



Brad's dizzy has "324" stamped on it. Is yours likely to be made in Feb '73. Brad (if it's original)?

1st number is the year, second & third number is the month

421 = 1974 January

324 = 1973 April


25 = May

26 = June

27 = July

28 = August

29 = September

30 = October

31 = November

32 = December

The following calendar year the January code resets to 21.



#19 yel327

yel327

    Oh My, Don't you post alot

  • Members
  • PipPipPipPipPipPipPip
  • 10,841 posts
  • Joined: 10-February 08

Posted 04 May 2021 - 04:43 PM

I should have twigged to this before. I was calling 9 230 063 801 (part number 2807236) a HJ distributor. It is actually HT-HJ, LH and early LX 308/5.0L. 800 is 253/4.2 for the same period.



So they are I believe:



9 230 063 800 HT-HJ, LH, early LX 253/4.2

9 230 063 801 HT-HJ, LH, early LX 253/4.2

9 230 063 824 HX, ADR27A LX 4.2

9 230 063 825 HX, ADR27A LX 4.2

9 230 063 834 HZ, VB 4.2 (probably late LX after HX release too)

9 230 063 835 HZ, VB 5.0 (ditto for late LX)



Not sure if there are any others in this period. The Bedford V8's were HEI dizzys.


Edited by yel327, 04 May 2021 - 04:50 PM.


#20 Bigfella237

Bigfella237

    Socially Distant

  • Members
  • PipPipPipPipPipPip
  • 3,705 posts
  • Name:Andrew
  • Location:Far South Coast of NSW
  • Car:(s) not as many as I'd like but more than I've got space for!
  • Joined: 31-October 14

Posted 08 May 2021 - 07:35 PM

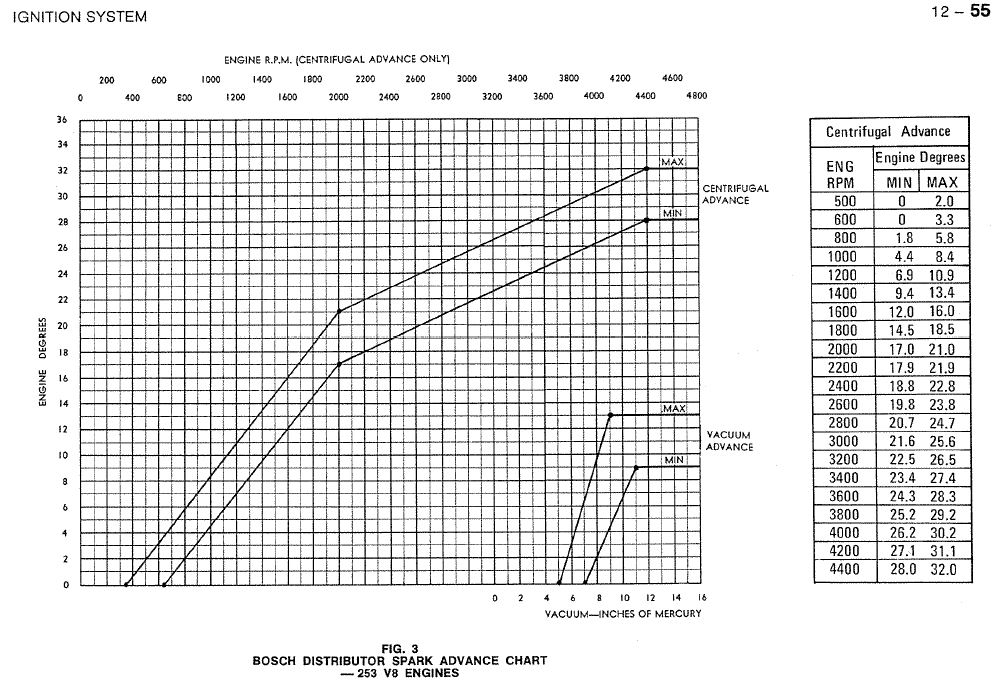

I was just looking for something else and ran across these pics in the service manual, I never realised how much difference there is between a 253 and a 308...



Distributor-Advance-Chart-253ci-engine.j



Distributor-Advance-Chart-308ci-engine.j



#21 Shiney005

Shiney005

    Oh My, Don't you post alot

  • Members
  • PipPipPipPipPipPipPip
  • 6,669 posts
  • Name:Laurie
  • Location:Dubya Hay
  • Car:Toyota Mirai
  • Joined: 19-January 12
Garage View Garage

Posted 09 May 2021 - 12:56 PM

Why would that be?



#22 yel327

yel327

    Oh My, Don't you post alot

  • Members
  • PipPipPipPipPipPipPip
  • 10,841 posts
  • Joined: 10-February 08

Posted 09 May 2021 - 01:28 PM

Until HJ the 308 had the same cam as the 253 but it was retarded about 5deg. They were the same 9:1 compression ratio, but with the same cam the 308 should have had more dynamic compression shouldn’t it? Hence the lower Max advance.
Once HJ 5.0L came out the 5.0L went to 9.7:1 but with a larger cam, but they kept the same dizzy, so the dynamic compression might have been close to the same?
